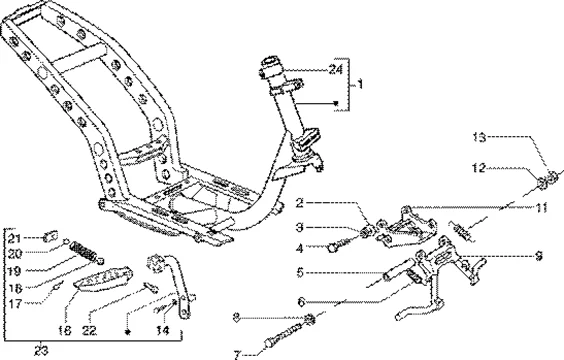

Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005 GILERA

Châssis : T20 CHASSIS-BEQUILLE
Chassis-bequille
Search
5776715 - CHASSIS

1
P2R reference P2R reference 81343
Maker reference Maker reference 5776715

5776715 - CHASSIS

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

2
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 3
MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

3
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

More information

Quantity required : 2
031122 - BOULON FIX BRAS

4
P2R reference P2R reference 65649
Maker reference Maker reference 0311225

031122 - BOULON FIX BRAS

More information

Quantity required : 2
CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc -583603-

5
P2R reference P2R reference 67287
Maker reference Maker reference 583603

CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -583603-

More information

Quantity required : 1
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940-

6
P2R reference P2R reference 66143
Maker reference Maker reference 278940

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940-

More information

Quantity required : 2
SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -030080-

7
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -030080-

More information

Quantity required : 1
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 stroke -271695-

8
P2R reference P2R reference 66102
Maker reference Maker reference 271695

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -271695-

More information

Quantity required : 2
581785 - BEQUILLE RUNNER EX 562910

9
P2R reference P2R reference 81635
Maker reference Maker reference 581785

581785 - BEQUILLE RUNNER EX 562910

More information

Quantity required : 1
CENTRAL STAND SUPPORT -272929-

11
P2R reference P2R reference 66121
Maker reference Maker reference 272929

CENTRAL STAND SUPPORT -272929-

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

12
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

13
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1
003058 - RONDELLE S00305800

14
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 2
LEFT or RIGHT PASSENGER FOOTREST MAT "PIAGGIO GENUINE PARTS" 50 NRG, TYPHOON/GILERA 50 RUNNER -295451-

16
P2R reference P2R reference 66280
Maker reference Maker reference 295451

LEFT OR RIGHT PASSENGER FOOTREST MAT "PIAGGIO GENUINE PARTS" 50 NRG, TYPHOON/GILERA 50 RUNNER -295451-

More information

Quantity required : 2
259933 - RESSORT

17
P2R reference P2R reference 66045
Maker reference Maker reference 259933

259933 - RESSORT

More information

Quantity required : 2
003058 - RONDELLE S00305800

18
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 2
2955909 - RESSORT

19
P2R reference P2R reference 162561
Maker reference Maker reference 295590

2955909 - RESSORT

More information

Quantity required : 2
2955909 - RESSORT

19
P2R reference P2R reference 162561
Maker reference Maker reference 2955909

2955909 - RESSORT

More information

Quantity required : 2
2955916 - BILLE

20
P2R reference P2R reference 181953
Maker reference Maker reference 2955916

2955916 - BILLE

More information

Quantity required : 2
295591 - BILLE

20
P2R reference P2R reference 66283
Maker reference Maker reference 295591
Replaced by référence Replaced by référence 181953

295591 - BILLE

More information

Quantity required : 2
295592 - PLAQUETTE

21
P2R reference P2R reference 66284
Maker reference Maker reference 295592

295592 - PLAQUETTE

More information

Quantity required : 2
295593 - PIVOT

22
P2R reference P2R reference 66285
Maker reference Maker reference 295593

295593 - PIVOT

More information

Quantity required : 2
573502 - REPOSE PIED DROIT

23
P2R reference P2R reference 80226
Maker reference Maker reference 573502

573502 - REPOSE PIED DROIT

More information

Quantity required : 1
573501 - REPOSE PIED GAUCHE

23
P2R reference P2R reference 80225
Maker reference Maker reference 573501

573501 - REPOSE PIED GAUCHE

More information

Quantity required : 1
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604-

24
P2R reference P2R reference 66306
Maker reference Maker reference 298604

LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604-

More information

Quantity required : 1
