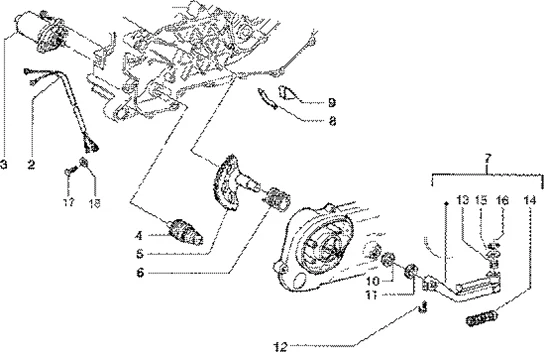

Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005 GILERA

Moteur : T12 DEMARREUR ELECTRIQUE-LEVIER DE DEMARRAGE
Demarreur electrique-levier de demarrage
Search
639856 - FAISCEAU CABLES

2
P2R reference P2R reference 67858
Maker reference Maker reference 639856

639856 - FAISCEAU CABLES

More information

Quantity required : 1
ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 50 2 stroke -82530R-

3
P2R reference P2R reference 68531
Maker reference Maker reference 82530R

ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 50 2 STROKE -82530R-

More information

Quantity required : 1
STARTER MOTOR GEAR "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -286174-

4
P2R reference P2R reference 66164
Maker reference Maker reference 286174

STARTER MOTOR GEAR "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -286174-

More information

Quantity required : 1
KICKSTART SHAFT "PIAGGIO GENUINE PART" FLY 2 stroke ET 4 stroke, LYBERTY 2 stroke ET 4 stroke, NRG, TYPHOON, VESPA LX 2 stroke ET 4 stroke/GILERA DNA, STALKER, RUNNER/APRILIA SR MOTARD, SPORT-CITY -831458-

5
P2R reference P2R reference 68967
Maker reference Maker reference 831458

KICKSTART SHAFT "PIAGGIO GENUINE PART" FLY 2 STROKE ET 4 STROKE, LYBERTY 2 STROKE ET 4 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE ET 4 STROKE/GILERA DNA, STALKER, RUNNER/APRILIA SR MOTARD, SPORT-CITY -831458-

More information

Quantity required : 1
RETURN SPRING FOR KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289495-

6
P2R reference P2R reference 66223
Maker reference Maker reference 289495

RETURN SPRING FOR KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289495-

More information

Quantity required : 1
KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214-

7
P2R reference P2R reference 66168
Maker reference Maker reference 286214

KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214-

More information

Quantity required : 1
KICK STARTER SHAFT WASHER (16,3x23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987-

10
P2R reference P2R reference 66443
Maker reference Maker reference 433987

KICK STARTER SHAFT WASHER (16,3X23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987-

More information

Quantity required : 1
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

11
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

More information

Quantity required : 1
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

12
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

More information

Quantity required : 1
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

12
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774-

More information

Quantity required : 1
KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214-

13
P2R reference P2R reference 66168
Maker reference Maker reference 286214

KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214-

More information

Quantity required : 1
KICK STARTER RUBBER "PIAGGIO GENUINE PART" COMMON FOR SCOOTERS 50cc -286217-

14
P2R reference P2R reference 66169
Maker reference Maker reference 286217

KICK STARTER RUBBER "PIAGGIO GENUINE PART" COMMON FOR SCOOTERS 50CC -286217-

More information

Quantity required : 1
286219 - RONDELLE

15
P2R reference P2R reference 66170
Maker reference Maker reference 286219

286219 - RONDELLE

More information

Quantity required : 1
288041 - CIRCLIPS

16
P2R reference P2R reference 66185
Maker reference Maker reference 288041

288041 - CIRCLIPS

More information

Quantity required : 1
018644 - VIS

17
P2R reference P2R reference 65449
Maker reference Maker reference 0186445

018644 - VIS

More information

Quantity required : 1
WASHER (4,2x7,6x0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404-

18
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404-

More information

Quantity required : 1
