Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

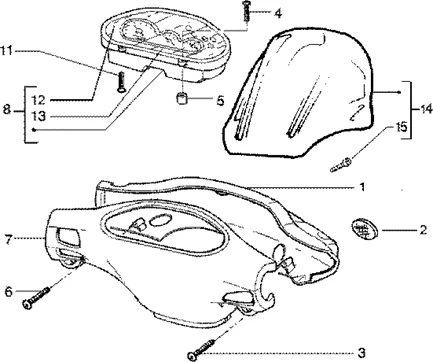

Guidon : T37 COMPTEUR KILOMETRIQUE-COUVERCLE DU GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T37.PNG)
1 |
56365750E1 - COUVRE GUIDON AV RUNNER GRIS OPAQUE 121 More informationQuantity required : 1 |
||||||
|
1 |
56365700G9 - COUVRE GUIDON AV RUNNER JAUNE 384 More informationQuantity required : 1 |
||||||
|
1 |
56365700F2 - COUVRE GUIDON RUNNER More informationQuantity required : 1 |
||||||
|
1 |
56365750R7 - COUVRE GUIDON AV RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/8/2/img/80382.jpg)
2 |
574503 - CACHE SUR GUIDON G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/8/1/img/80381.jpg)
2 |
574502 - CACHE SUR GUIDON D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
3 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 2 |
||||||
|
5 |
297707 - MOYEU More informationQuantity required : 2 |
||||||
|
6 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/7/0/img/77970.jpg)
7 |
298148000C - CACHE DIRECTION INT More informationQuantity required : 1 |
||||||
|
8 |
584184 - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
|
8 |
584025 - GROUPE INSTR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/9/img/65439.jpg)
11 |
018544 - VIS More informationQuantity required : 2 |
||||||
|
12 |
494806 - GLACE COMPTEUR More informationQuantity required : 1 |
||||||
|
13 |
497337 - DESSUS COMPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
15 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 2 |
