Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

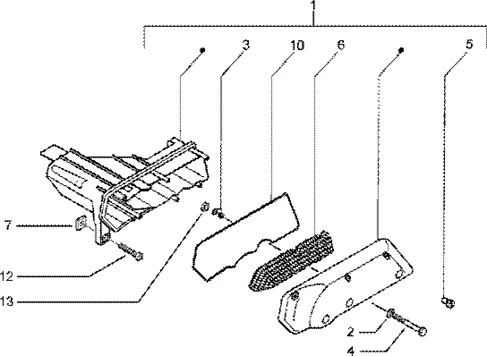

Châssis : T23 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/2/1/img/93021.jpg)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004, NRG INJECTION 2005/GILERA 50 STALKER, RUNNER 1998>2004, RUNNER INJECTION 2005> -845662- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/9/img/168759.JPG)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -1A010666 - More informationQuantity required : 1 |
||||||
|
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -1A010666 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
2 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
3 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
3 |
830056 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
4 |
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
5 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/5/img/157075.jpg)
6 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO 50 ZIP 2T 2000>, VESPA LX 2T 2005>, LYBERTY 2T 2005>, NRG 2005>/GILERA 50 DNA, RUNNER 2005>, STALKER 2001>/APRILIA 50 SR 2012> -1A0122830P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/4/img/157084.jpg)
6 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO 50 NRG 1998>2005, NRG INJECTION, TYPHOON 1998>2003/GILERA 50 STALKER 1998>2005, RUNNER 1998>2005, RUNNER INJECTION 2005>2011 -4797480P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
8 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/9/2/0/img/78920.jpg)
9 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 50 NRG 1998>2005, TIPHOON 1998>2004/GILERA 50 RUNNER 1998>2004 -479745- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/6/img/66746.jpg)
10 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50 CC 2 STROKE 2004> -487718- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/9/2/1/img/78921.jpg)
10 |
479749 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/2/img/65392.jpg)
12 |
SCREW - FOR AIR BOX 6X20 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -015759- More informationQuantity required : 1 |
||||||
|
13 |
012533 - RONDELLE More informationQuantity required : 2 |
