Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

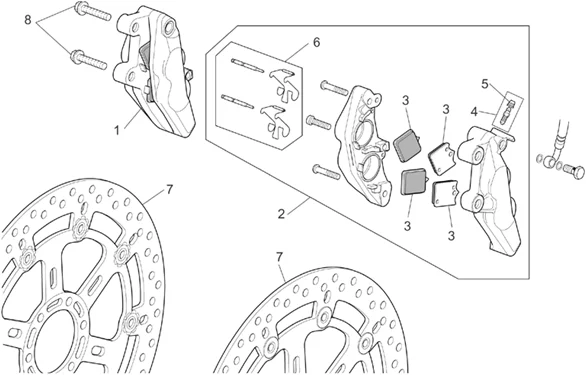

Chassis : 28.40 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_28.40.PNG)
1 |
AP8113970 - MACHOIRE FREIN AV D OR; More informationQuantity required : 1 |
||||||
|
3 |
AP8113972 - PLAQUETTES 4 MRC.; More informationQuantity required : 2 |
||||||
|
4 |
AP8113973 - PURGE AIR; More informationQuantity required : 2 |
||||||
|
5 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 2 |
||||||
|
6 |
AP8133593 - GOUJON+RESSORT PINCE; More informationQuantity required : 2 |
||||||
|
7 |
AP8113926 - DISQUE FREIN AVANT; More informationQuantity required : 2 |
||||||
|
7 |
AP8133781 - DISCO FRENO ANT.D.320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/7/img/71977.jpg)
8 |
SCREW - FOR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO/MOTO-GUZZI 1200 SPORT, BREVA, NORGE, 1400 CALIFORNIA -AP8152385- More informationQuantity required : 4 |
