Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

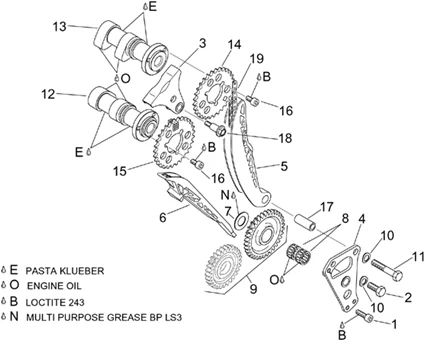

Moteur : 29.62 DISTRIBUTION CYLINDRE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_29.62.PNG)
1 |
AP0240400 - VIS More informationQuantity required : 1 |
||||||
|
2 |
AP0940590 - VIS More informationQuantity required : 1 |
||||||
|
3 |
AP0236320 - GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
4 |
AP0211766 - PL.SUPPORT PALIERS More informationQuantity required : 1 |
||||||
|
5 |
AP0236300 - GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
6 |
AP0236310 - GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
7 |
AP0627190 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
AP0632161 - CAGE A ROULEAUX More informationQuantity required : 2 |
||||||
|
9 |
AP0295765 - ENGRENAGE DISTRIB.CPL. More informationQuantity required : 1 |
||||||
|
11 |
AP0940631 - VIS More informationQuantity required : 1 |
||||||
|
12 |
AP0220702 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
13 |
AP0220380 - ARBRE A CAME ASPIR. More informationQuantity required : 1 |
||||||
|
13 |
AP0220389 - ALBERO A CAMME ASPIRAZIONE More informationQuantity required : 1 |
||||||
|
14 |
AP0634732 - ENGRENAGE DISTRIBUTION More informationQuantity required : 1 |
||||||
|
15 |
AP0634737 - ENGRENAGE DISTRIBUTION More informationQuantity required : 1 |
||||||
|
16 |
AP0840371 - VIS More informationQuantity required : 6 |
||||||
|
17 |
AP0247980 - DOUILLE More informationQuantity required : 1 |
||||||
|
18 |
AP0240960 - VIS ENTRETOISE More informationQuantity required : 2 |
||||||
|
19 |
AP0297957 - CATENA DISTRIBUZIONE More informationQuantity required : 1 |
