Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

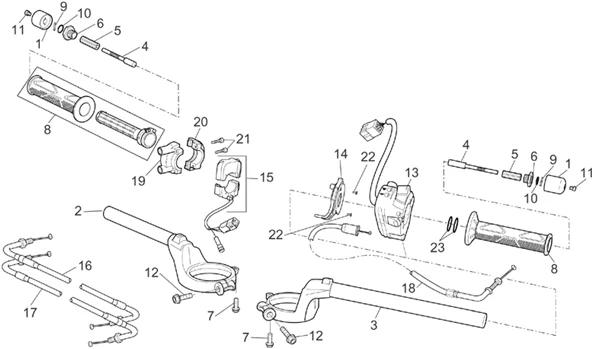

Chassis : 28.26 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_28.26.PNG)
1 |
AP8104573 - POIDS ANTI VIBRATION More informationQuantity required : 2 |
||||||
|
2 |
AP811864944 - DEMI-GUID.DTE More informationQuantity required : 1 |
||||||
|
2 |
AP8118647 - SEMIMANUBRIO DX More informationQuantity required : 1 |
||||||
|
3 |
AP8118648 - SEMIMANUBRIO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/3/7/img/139437.JPG)
3 |
AP81186505 - DEMI-GUIDON G More informationQuantity required : 1 |
||||||
|
4 |
AP8121262 - ARBRE MASSE ANTIVIBRATILE More informationQuantity required : 2 |
||||||
|
6 |
AP8121261 - TERM.POIDS ANTIVIB. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/3/9/img/46339.JPG)
8 |
AP8118501 - COUPLE MANETTES, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.JPG)
10 |
AP8120178 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/2/img/50942.jpg)
11 |
AP8152040 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
12 |
AP8152289 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
13 |
AP8127524 - DEVIOLUCI SX More informationQuantity required : 1 |
||||||
|
14 |
GU01132330 - COMMANDE STARTER More informationQuantity required : 1 |
||||||
|
15 |
AP8127523 - DISPOSITIVO ENGINE STOP-START More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/5/7/img/46157.jpg)
16 |
OPENING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8114404- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/5/8/img/46158.jpg)
17 |
CLOSING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8114405- More informationQuantity required : 1 |
||||||
|
18 |
AP8114359 - CABLE STARTER; More informationQuantity required : 1 |
||||||
|
19 |
AP8118566 - CAVALIER AV. COMMANDE GAZ; More informationQuantity required : 1 |
||||||
|
20 |
AP8118567 - CAVALIER AR. COMMANDE GAZ; More informationQuantity required : 1 |
||||||
|
21 |
AP8118492 - VIS CALOTTE; More informationQuantity required : 2 |
||||||
|
22 |
AP8150472 - VIS TSPEI INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/3/img/97063.jpg)
23 |
AP8120190 - JOINT TORIQUE More informationQuantity required : 1 |
