Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

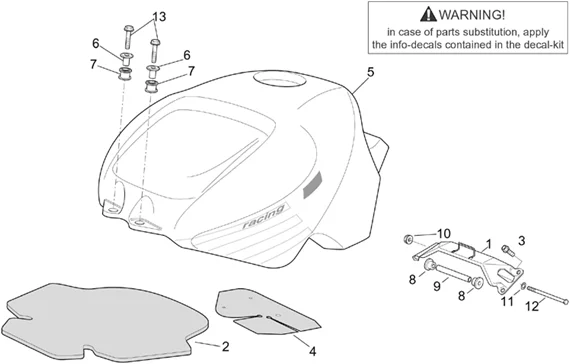

Chassis : 28.18 RÉSERVOIR ESSENCE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_28.18.PNG)
1 |
AP8134370 - SUPPORT RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8117174 - PANN.INSONORIS.RES.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 4 |
||||||
|
4 |
AP8117128 - PANN.THERMOFUGE RES.; More informationQuantity required : 1 |
||||||
|
5 |
AP8149920 - RESERV. ESS.P.J. FL.; More informationQuantity required : 1 |
||||||
|
5 |
AP8168131 - RESERVOIR NOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8158674 - RESERV. ESS.P.J. FL.; More informationQuantity required : 1 |
||||||
|
5 |
AP8158600 - RESERVOIR NOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8158597 - RESERVOIR NOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8158596 - RESERVOIR ESSENCE PEINT GRIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8149942 - RESERV.ESS.TIGE H.R.; More informationQuantity required : 1 |
||||||
|
6 |
AP8121421 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
7 |
AP8144328 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
8 |
AP8123934 - CAOUTCHOUC; More informationQuantity required : 2 |
||||||
|
9 |
AP8134419 - DOUILLE ATTACHE RESERVOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
11 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
AP8150459 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
13 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
