Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

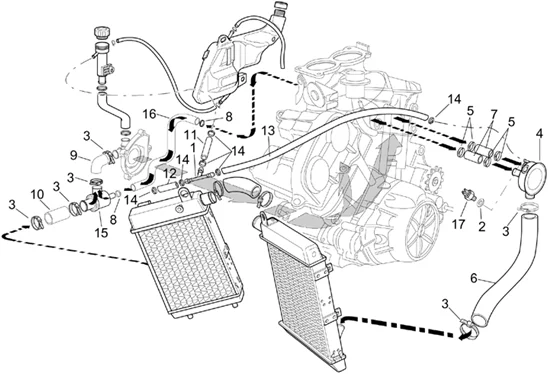

Chassis : 28.29 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/314/RSV_1000_2001-2002_28.29.PNG)
1 |
AP8102431 - RACCORD 3 VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/0/img/71490.jpg)
2 |
TEMPERATURE SENSOR WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA -AP8121837- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/7/img/71217.jpg)
3 |
AP8104097 - COLLIER SERR. TUBE; More informationQuantity required : 6 |
||||||
|
4 |
AP8102677 - COLLECTEUR A TROIS VOIES More informationQuantity required : 1 |
||||||
|
5 |
AP8102732 - COLLIER More informationQuantity required : 4 |
||||||
|
6 |
AP8120978 - TUYAU EAU COLL.-RAD. More informationQuantity required : 1 |
||||||
|
7 |
AP8120979 - TUYAU MOTEUR-COLLEC. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
8 |
AP8101927 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/3/img/49583.JPG)
9 |
AP8144033 - TUY.THERMOS.-POMPE More informationQuantity required : 1 |
||||||
|
10 |
AP8144034 - TUYAU THERM-RADIATEUR More informationQuantity required : 1 |
||||||
|
11 |
AP8144094 - TUY.PURGE RACC.-COL.; More informationQuantity required : 1 |
||||||
|
12 |
AP8144093 - TUY.PURGE RAD-RACC.; More informationQuantity required : 1 |
||||||
|
13 |
AP8144092 - TUYAU PURGE COLLEC.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
14 |
AP8102764 - COLLIER CLIC More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/6/6/7/img/47667.JPG)
15 |
AP8124929 - GROUPE THERMOSTAT More informationQuantity required : 1 |
||||||
|
16 |
AP8120980 - TUY.THERMOSTAT-MOT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/0/1/img/45901.jpg)
17 |
TEMPERATURE SENSOR/SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUNO V2, FALCO, 125 SCARABEO, LEONARDO MOTEUR ROTAX -AP8112939- More informationQuantity required : 1 |
