Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

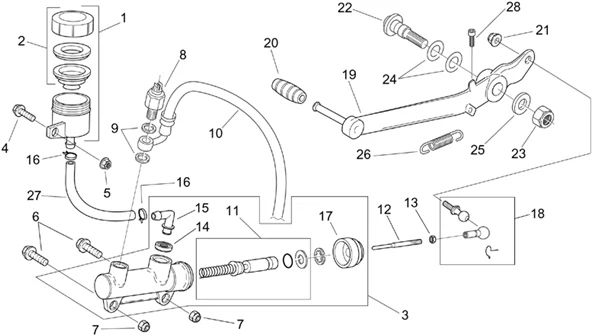

Chassis : 28.27 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/6/5/img/56465.jpg)
1 |
TANK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART"APRILIA 50-125 RS, PEGASO, AF1, TUONO, 50 RALLY, MX, SX, RX -AP8213446- More informationQuantity required : 1 |
||||||
2 |
AP8213478 - BOUCHON RESERVOIR HUILE More informationQuantity required : 1 |
||||||
|
3 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005 -AP8213314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
4 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
5 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
7 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/8/img/47498.jpg)
8 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, MX, TUONO -AP8124479- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
AP8213315 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/2/6/img/46026.jpg)
11 |
MAINTENANCE KIT- FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8113822- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/2/7/img/45927.jpg)
12 |
AP8113276 - TIGE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
13 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
AP8113821 - JOINT RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/1/3/img/45913.jpg)
15 |
BRAKE MASTER CYLINDER UNION "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, TUONO -AP8113157- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/0/img/45230.jpg)
16 |
AP8102811 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/2/7/img/46027.jpg)
17 |
REAR MASTER CYLINDER PROTECTIVE COVER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005 -AP8213823- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
18 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/7/img/72337.jpg)
19 |
REAR BRAKE PEDAL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -AP8235012- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
20 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/6/img/50826.jpg)
21 |
AP8150025 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
22 |
BRAKE LEVER PIN "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA -AP8121284- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
23 |
NUT - FRAME FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA +MOTO-GUZZI -AP8150436- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
24 |
AP8121697 - RESSORT A GODET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
25 |
AP8152176 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/4/0/img/72840.jpg)
26 |
RETURN SPRING FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -B044255- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
27 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
28 |
AP8150280 - VIS More informationQuantity required : 1 |
