Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

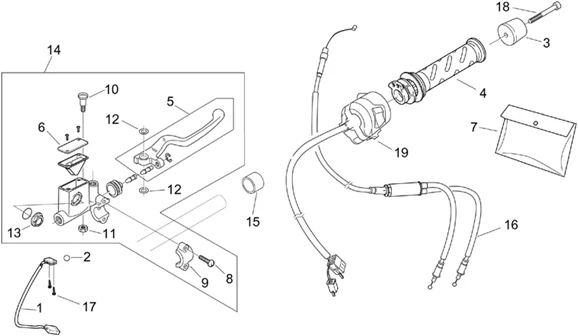

Chassis : 28.16 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/4/4/img/56244.jpg)
1 |
STOP SWITCH+WIRING "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, CLASSIC, TUONO, 125 PEGASO, TUONO, 600-650 PEGASO -AP8212196- More informationQuantity required : 1 |
||||||
2 |
AP8201326 - BILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8202330 - MASSE ANTI VIBRATOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/3/img/73483.JPG)
4 |
GU32603310 - POIGNEE DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/5/7/img/56457.jpg)
5 |
AP8213422 - LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
|
6 |
AP8213477 - COUVERCLE RESERVOIR; More informationQuantity required : 1 |
||||||
|
7 |
AP8213420 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
8 |
AP8213421 - VIS More informationQuantity required : 2 |
||||||
|
9 |
AP8213078 - CAVALIER More informationQuantity required : 1 |
||||||
|
10 |
AP8113413 - PIVOT LEVIER FREIN More informationQuantity required : 1 |
||||||
|
13 |
AP8213277 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
14 |
AP8213436 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
15 |
AP8221351 - DISTANZIALE DEVIOLUCI DX More informationQuantity required : 1 |
||||||
|
16 |
TRANSMISSION THROTTLE CABLE (COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50-125 TUONO EURO-1 -AP8214225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/0/0/img/56600.jpg)
16 |
TRANSMISSION THROTTLE CABLE (COMPLETE) "PIAGGIO GENUINE PART" APRILIA 50-125 TUONO EURO-2 -AP8214237- More informationQuantity required : 1 |
||||||
|
17 |
AP8150238 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
18 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 1 |
||||||
|
19 |
AP8224551 - DEVIOLUCI DX More informationQuantity required : 1 |
