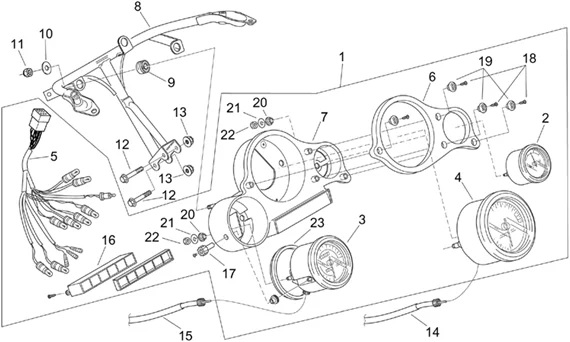

Chassis : 28.14 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.14.PNG)
1 |
AP8224411 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
2 |
AP8224122 - THERMOMETRE EAU; More informationQuantity required : 1 |
||||||
|
4 |
AP8224120 - COMPTE-TOURS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/6/1/img/57261.jpg)
5 |
WIRING FOR SPEEDMOTER+BULBS "PIAGGIO GENUINE PART" APRILIA 50 RS, TUONO 1999>2004 -AP8224123- More informationQuantity required : 1 |
||||||
|
6 |
AP8224124 - REMBOURRAGE POUR TACHYMETRE; More informationQuantity required : 1 |
||||||
|
7 |
AP8224125 - BASE SUPPORT INSTRUMENTS; More informationQuantity required : 1 |
||||||
|
8 |
AP8235152 - TELAIETTO PORTASTRUM.SABB.CAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
9 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
10 |
AP8150015 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
12 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/6/8/img/56568.jpg)
14 |
TRANSMISSION CABLE FOR RPM GAUGE "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, TUONO 2003>2004 -AP8214179- More informationQuantity required : 1 |
||||||
|
15 |
AP8214226 - CAVO CONTAKM More informationQuantity required : 1 |
||||||
|
16 |
AP8220275 - BO?TIER TEMOINS More informationQuantity required : 1 |
||||||
|
17 |
AP8102217 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
19 |
AP8102216 - DOUILLE FIXATION REMBOURRAGE More informationQuantity required : 4 |
||||||
|
20 |
AP8120760 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
|
23 |
AP8120759 - JOINT TACHYMETRE More informationQuantity required : 1 |
