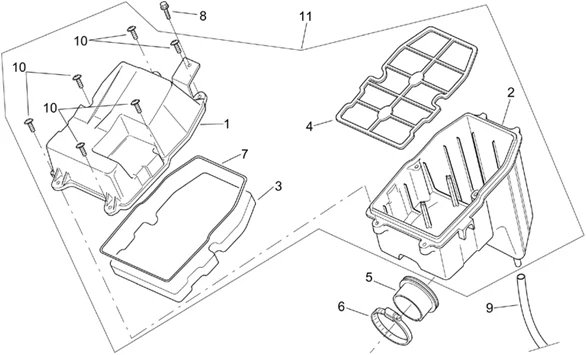

Chassis : 28.19 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.19.PNG)
1 |
AP8258334 - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
2 |
AP8239464 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
2 |
AP8268159 - BASE CASSA FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/8/img/72148.jpg)
3 |
AIR FILTER FOAM "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, TUONO 2003>2004 -AP8202096- More informationQuantity required : 1 |
||||||
|
4 |
AP8239640 - GRILLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
5 |
AP8220612 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/1/0/img/57010.jpg)
6 |
AP8221159 - COLLIER DURITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
7 |
AP8120615 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
9 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 6 |
||||||
|
11 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, 50 TUONO 2003>2004 -AP8268161- More informationQuantity required : 1 |
