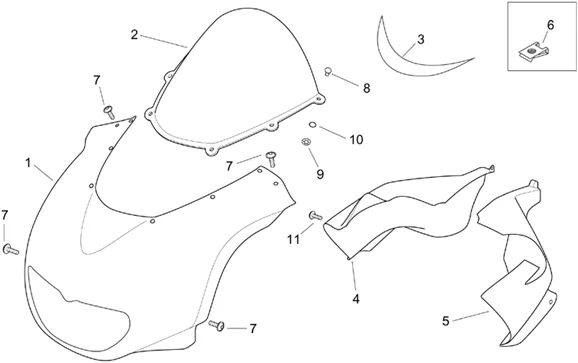

Chassis : 28.08 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.08.PNG)
1 |
AP8168841 - FRONTALE CARENA V. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8178008 - FRONTALE CARENA V.ROSSO T. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268183 - FRONTALE CARENA V.NERO More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168975 - VETRO CUPOLINO More informationQuantity required : 1 |
|||||||||
|
3 |
AP8157105 - DEC. VERRE COUPOLE; More informationQuantity required : 1 |
|||||||||
|
5 |
AP8258922 - CHIUSURA SX CRUSCOTTO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO -AP8144109- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
9 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
10 |
O'RING GASKET FOR FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120965- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 2 |
|||||||||
