Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

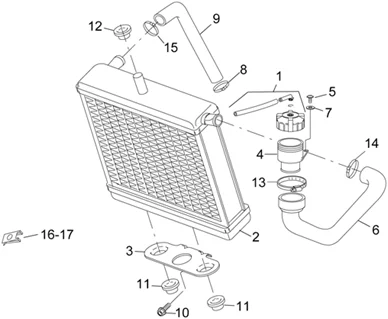

Chassis : 28.19 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/7/img/55357.jpg)
1 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463- More informationQuantity required : 1 |
||||||
2 |
AP8201476 - RADIATEUR; More informationQuantity required : 1 |
||||||
|
3 |
AP8234158 - SUPPORT RADIATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/1/img/55351.jpg)
4 |
AP8201312 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
5 |
AP8152268 - VIS More informationQuantity required : 1 |
||||||
|
6 |
AP8220235 - TUBE REMPL. RADIAT. More informationQuantity required : 1 |
||||||
|
7 |
AP8150178 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/8/img/71158.jpg)
8 |
AP8101722 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
10 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/5/img/46595.jpg)
11 |
AP8120275 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
12 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
13 |
AP8220104 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
14 |
AP8201169 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
15 |
AP8101927 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
16 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
