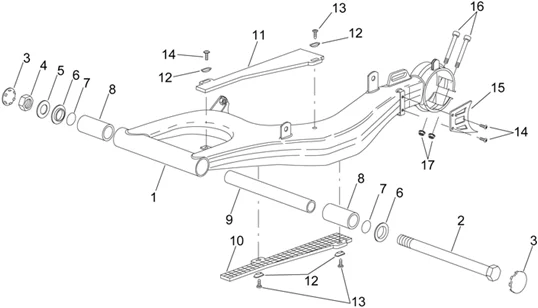

Chassis : 28.07 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/9/img/50939.jpg)
4 |
AP8152007 - ECROU BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/6/img/50846.jpg)
5 |
AP8150208 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/1/img/56841.jpg)
6 |
AP8220196 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/3/img/56843.jpg)
7 |
AP8220198 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
8 |
AP8220197 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/1/img/56991.jpg)
9 |
AP8221024 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.JPG)
12 |
AP8234020 - RONDELLE POUR PATIN; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
13 |
AP8150246 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
14 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/8/img/71868.jpg)
16 |
AP8150354 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
17 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 2 |
