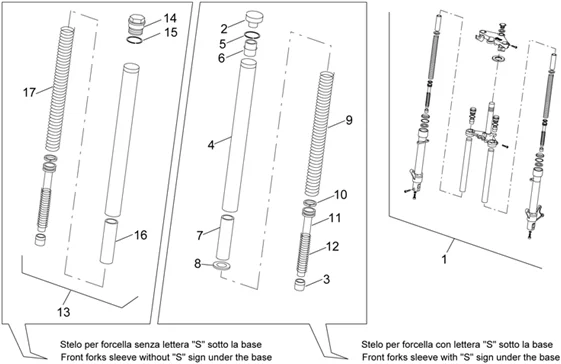

Chassis : 28.04 FOURCHE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.04.PNG)
1 |
AP8203576 - FOURCHE COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
AP8203777 - BOUCHON; More informationQuantity required : 2 |
||||||
|
3 |
AP8203862 - TAMPON DE FOND More informationQuantity required : 2 |
||||||
|
4 |
AP8203848 - TIGE More informationQuantity required : 2 |
||||||
|
5 |
AP8203702 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
6 |
AP8203856 - GR. BOUCHON CPL. More informationQuantity required : 2 |
||||||
|
9 |
AP8203859 - RESSORT More informationQuantity required : 2 |
||||||
|
12 |
AP8203786 - CONTRE-RESSORT; More informationQuantity required : 2 |
||||||
|
13 |
AP8203584 - TIGE COMPLET More informationQuantity required : 2 |
||||||
|
17 |
AP8203748 - RESSORT; More informationQuantity required : 2 |
