Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

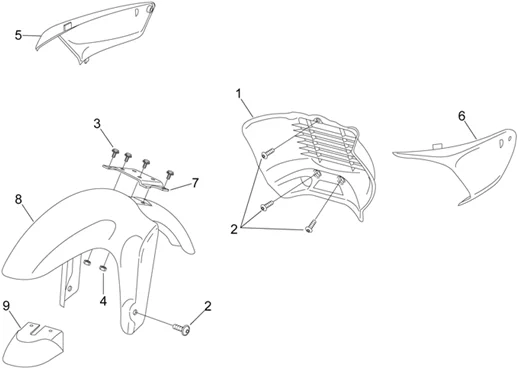

Chassis : 28.09 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.09.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
4 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
||||||
5 |
AP8238603 - PRISE D'AIR DTE PEINT GRISE; More informationQuantity required : 1 |
||||||
|
5 |
AP8239883 - PRISE D'AIR D. V.RGE FLUO; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/8/4/img/45284.jpg)
7 |
STIFFENING PLATE "PIAGGIO GENUINE PART" APRILIA 50 RS, AFI, TUONO, EUROPA -AP8103705- More informationQuantity required : 1 |
