Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

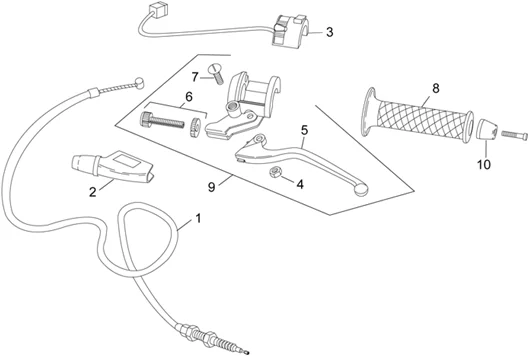

Chassis : 28.18 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/3/img/56533.jpg)
1 |
TRANSMISSION CLUTCH CABLE "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998, AF1 -AP8214086- More informationQuantity required : 1 |
||||||
1 |
AP8214148 - CABLE EMBRAYAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/4/img/46594.jpg)
2 |
AP8120271 - CACHE-REGLAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/3/img/56313.jpg)
3 |
LEFT SWITCH WITH WIRING "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX -AP8212752- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
4 |
AP8118490 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
AP8218280 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/8/7/img/46287.jpg)
6 |
CLUTCH LEVER ADJUSTER "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, PEGASO, EUROPA, TUAREG, CLASSIC, AF1 -AP8118104- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
7 |
SCREW - FOR CLUTCH LEVER ADJUSTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS/MOTO-GUZZI 750 BREVA, NEVADA, V7, V9 -AP8213028- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.JPG)
8 |
AP8118287 - COUPLE MANETTES; More informationQuantity required : 1 |
||||||
|
9 |
AP8218255 - COMMANDE EMBRAYAGE CPL; More informationQuantity required : 1 |
||||||
|
10 |
AP8104574 - MASSE ANTI VIBRATOIRE More informationQuantity required : 1 |
