Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

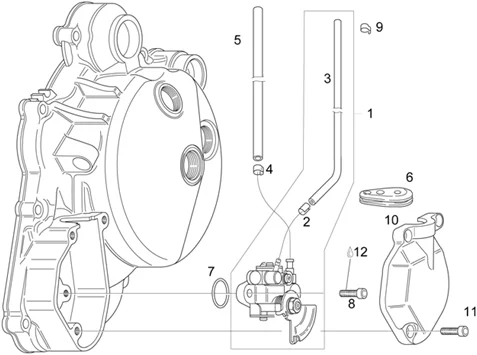

Moteur : 29.47 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_29.47.PNG)
1 |
AP0294735 - POMPE A HUILE COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
AP0256408 - COLLIER 4,8 More informationQuantity required : 1 |
||||||
|
3 |
AP0256410 - TUYAU More informationQuantity required : 1 |
||||||
|
4 |
AP0251080 - COLLIER More informationQuantity required : 1 |
||||||
|
5 |
OIL PUMP HOSE "PIAGGIO GENUINE PARTS" APRILIA MOTO 125 CC -AP0256037- More informationQuantity required : 1 |
||||||
|
6 |
AP0260030 - CAOUTCHOUC CACHE-FIL More informationQuantity required : 1 |
||||||
|
7 |
AP0250890 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
8 |
AP0840510 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/4/1/img/44541.jpg)
9 |
AP0853840 - COLLIER More informationQuantity required : 1 |
||||||
|
10 |
AP0211440 - COUVERCLE POMPE HUILE; More informationQuantity required : 1 |
||||||
|
11 |
AP0840511 - VIS More informationQuantity required : 3 |
||||||
|
12 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
