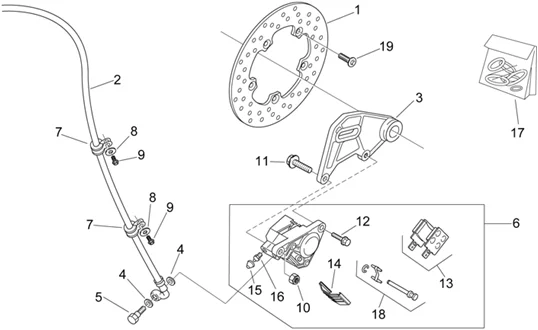

Chassis : 28.30 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.30.PNG)
1 |
AP8213317 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
AP8113714 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
3 |
AP8134911 - PLAQ. FIX PINCE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
|
6 |
AP8133570 - PINCE FREIN AR NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/2/img/71642.jpg)
7 |
AP8132907 - COLLIER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
8 |
AP8150013 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
9 |
AP8152272 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
10 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
11 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
12 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 1 |
||||||
|
13 |
AP8113651 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
14 |
AP8113117 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
15 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
16 |
SCREW - DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8113006- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/1/2/img/45912.JPG)
17 |
AP8113122 - SERIE BAGUES D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
18 |
AP8113818 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/5/3/img/56453.jpg)
19 |
AP8213418 - VIS More informationQuantity required : 5 |
