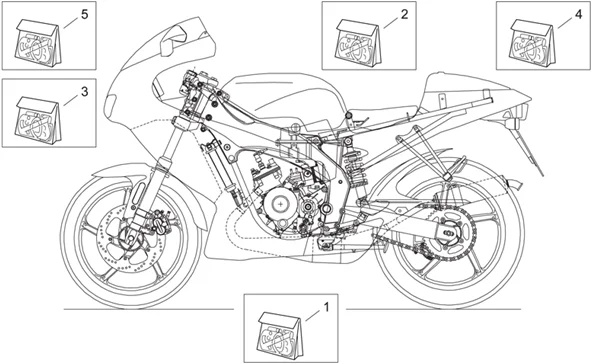

Chassis : 28.36 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.36.PNG)
1 |
AP8166409 - DECALCO-SERIE CARENA More informationQuantity required : 1 |
||||||
|
1 |
AP8177512 - DECAL-SERIE CARENAGE More informationQuantity required : 1 |
||||||
|
1 |
AP8177507 - DECAL-SERIE CARENAGE More informationQuantity required : 1 |
||||||
|
1 |
AP8177068 - DECAL-SERIE CARENAGE; More informationQuantity required : 1 |
||||||
|
1 |
AP8177067 - DECAL-SERIE CARENAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/9/1/4/img/52914.jpg)
1 |
STICKERS KIT- FOR FAIRINGS APRILIA 125 RS 1999>2005 ( BLACK DIABLO 2001) -AP8167643- More informationQuantity required : 1 |
||||||
|
1 |
AP8167019 - DECAL-SERIE CARENAGE More informationQuantity required : 1 |
||||||
|
1 |
AP8167018 - DECAL-SERIE CARENAGE More informationQuantity required : 1 |
||||||
|
1 |
AP8166651 - DECALCO SERIE CARENA More informationQuantity required : 1 |
||||||
|
1 |
AP8166650 - DECALCO SERIE CARENA More informationQuantity required : 1 |
||||||
|
1 |
AP8166413 - DECALCO-SERIE CARENA More informationQuantity required : 1 |
||||||
|
2 |
AP8177069 - DECAL-SERIE RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8177070 - DECAL-SERIE RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8177506 - DECAL-SERIE RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8177511 - DECAL-SERIE RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8167644 - DECAL-SERIE RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8167020 - DECAL-SERIE RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8166653 - DECALCO SERIE SERBATOIO More informationQuantity required : 1 |
||||||
|
2 |
AP8166652 - DECALCO SERIE SERBATOIO More informationQuantity required : 1 |
||||||
|
2 |
AP8166414 - DECALCO-SERIE SERBATOIO More informationQuantity required : 1 |
||||||
|
2 |
AP8157136 - DECAL-SERIE RESERVOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8177513 - DECAL-SERIE BULLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8177508 - DECAL-SERIE BULLE More informationQuantity required : 1 |
||||||
|
3 |
AP8177072 - DECAL-SERIE BULLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8177071 - DECAL-SERIE BULLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8166655 - DECALCO SERIE FRONTALE/CUPOL. More informationQuantity required : 1 |
||||||
|
3 |
AP8166654 - DECALCO SERIE FRONTALE/CUPOL. More informationQuantity required : 1 |
||||||
|
3 |
AP8166415 - DECALCO-SERIE FRONTALE/CUPOL. More informationQuantity required : 1 |
||||||
|
3 |
AP8166411 - DECALCO-SERIE FRONTALE/CUPOL. More informationQuantity required : 1 |
||||||
|
3 |
AP8157138 - DECAL-SERIE BULLE; More informationQuantity required : 1 |
||||||
|
4 |
AP8177514 - DECAL-SERIE ARRIERE; More informationQuantity required : 1 |
||||||
|
4 |
AP8177509 - DECAL-SERIE ARRIERE More informationQuantity required : 1 |
||||||
|
4 |
AP8177074 - DECAL-SERIE ARRIERE; More informationQuantity required : 1 |
||||||
|
4 |
AP8177073 - DECAL-SERIE ARRIERE; More informationQuantity required : 1 |
||||||
|
4 |
AP8167646 - DECAL-SERIE ARRIERE; More informationQuantity required : 1 |
||||||
|
4 |
AP8167025 - DECAL-SERIE ARRIERE; More informationQuantity required : 1 |
||||||
|
4 |
AP8166657 - DECALCO SERIE CODONE More informationQuantity required : 1 |
||||||
|
4 |
AP8166656 - DECALCO SERIE CODONE More informationQuantity required : 1 |
||||||
|
4 |
AP8166416 - DECALCO-SERIE CODONE More informationQuantity required : 1 |
||||||
|
4 |
AP8166412 - DECALCO-SERIE CODONE More informationQuantity required : 1 |
||||||
|
5 |
AP8157142 - DECALCO SERIE TECHNIQUES; More informationQuantity required : 1 |
||||||
|
5 |
AP8167647 - DECALCO SERIE TECHNIQUES; More informationQuantity required : 1 |
||||||
|
5 |
AP8177075 - DECALCO SERIE TECHNIQUES; More informationQuantity required : 1 |
||||||
|
5 |
AP8177510 - DECALCO SERIE TECHNIQUES More informationQuantity required : 1 |
