Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

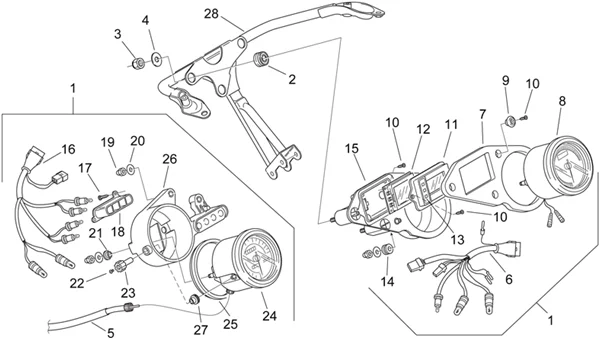

Chassis : 28.15 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.15.PNG)
1 |
AP8124491 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
1 |
AP8127325 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
1 |
AP8124835 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
2 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
3 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
4 |
AP8150179 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/3/img/46113.jpg)
5 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2005 -AP8114334- More informationQuantity required : 1 |
||||||
|
5 |
AP8114483 - TRASMISSIONE CONTAKM More informationQuantity required : 1 |
||||||
|
6 |
AP8124652 - CABLAGE COMPTE-TR-MULTIF.; More informationQuantity required : 1 |
||||||
|
7 |
AP8124198 - JOINT MOUSSE More informationQuantity required : 1 |
||||||
|
8 |
AP8124225 - COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
9 |
AP8124253 - DOUILLE FIXATION REMBOURRAGE More informationQuantity required : 3 |
||||||
|
10 |
AP8123553 - VIS BOUCHON More informationQuantity required : 7 |
||||||
|
11 |
AP8124194 - VITRE DISP. MULTIF. More informationQuantity required : 1 |
||||||
|
12 |
AP8124226 - DISPOS. MULTIFONCT. More informationQuantity required : 1 |
||||||
|
13 |
AP8124195 - BOUCHON DISP.MULTIF. More informationQuantity required : 1 |
||||||
|
15 |
AP8124197 - SUPPORT COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
16 |
AP8124654 - CABLAGE TACHYMETRE; More informationQuantity required : 1 |
||||||
|
18 |
AP8124657 - PORTE-TEMOINS; More informationQuantity required : 1 |
||||||
|
20 |
AP8124659 - RONDELLE; More informationQuantity required : 6 |
||||||
|
21 |
AP8124254 - CAOUTCHOUC TACHYM. More informationQuantity required : 2 |
||||||
|
22 |
AP8124660 - VIS BOUTON BL.; More informationQuantity required : 1 |
||||||
|
23 |
AP8131176 - POUSSOIR RAZ; More informationQuantity required : 1 |
||||||
|
24 |
AP8124224 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
24 |
AP8127361 - COMPTEUR KILOMETRIQUE; More informationQuantity required : 1 |
||||||
|
25 |
AP8124252 - JOINT TACHYMETRE More informationQuantity required : 1 |
||||||
|
26 |
AP8124653 - SUPPORT TACHY.; More informationQuantity required : 1 |
||||||
|
27 |
AP8124661 - CAOUTCHOUC ZEROTEUR; More informationQuantity required : 1 |
||||||
|
28 |
AP8146079 - CADRE PORTE-INSTRUM.; More informationQuantity required : 1 |
