Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

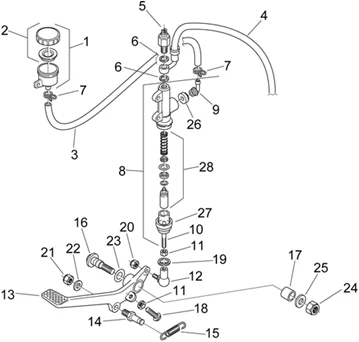

Chassis : 28.29 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/6/5/img/56465.jpg)
1 |
TANK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART"APRILIA 50-125 RS, PEGASO, AF1, TUONO, 50 RALLY, MX, SX, RX -AP8213446- More informationQuantity required : 1 |
||||||
2 |
AP8213478 - BOUCHON RESERVOIR HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
3 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
|
4 |
AP8113714 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/8/img/47498.jpg)
5 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, MX, TUONO -AP8124479- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
6 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/0/img/45230.jpg)
7 |
AP8102811 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/4/img/56384.jpg)
8 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RALLY, PEGASO, MX, TUONO -AP8213117- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/1/3/img/45913.jpg)
9 |
BRAKE MASTER CYLINDER UNION "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, TUONO -AP8113157- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/8/img/56998.jpg)
10 |
AP8221074 - POUS M-CYL. FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
11 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
12 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
|
13 |
AP8132635 - LEVIER DE FREIN AR; More informationQuantity required : 1 |
||||||
|
14 |
AP8121835 - PIVOT FIX. RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/6/img/46726.jpg)
15 |
AP8121118 - RESS.HEL.CYL.TRACT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
16 |
BRAKE LEVER PIN "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA -AP8121284- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/9/img/46729.jpg)
17 |
AP8121147 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
18 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
19 |
658830 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
20 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
21 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
22 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
23 |
AP8152176 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
24 |
NUT - FRAME FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA +MOTO-GUZZI -AP8150436- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
25 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
26 |
AP8113821 - JOINT RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/2/7/img/46027.jpg)
27 |
REAR MASTER CYLINDER PROTECTIVE COVER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005 -AP8213823- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/2/6/img/46026.jpg)
28 |
MAINTENANCE KIT- FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8113822- More informationQuantity required : 1 |
