Vehicle Exploded View - APRILIA RALLY 50 Air 1995-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

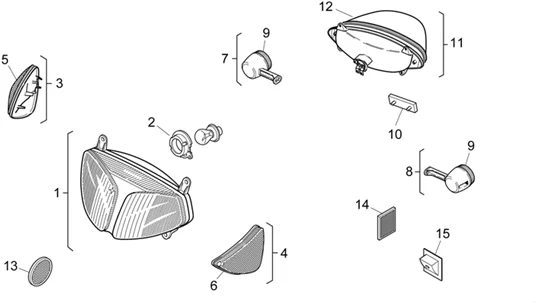

Chassis : 28.09 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.09.PNG)
1 |
AP8212687 - PHARE AV SANS BO?TIER More informationQuantity required : 1 |
||||||
|
1 |
AP8212734 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
2 |
AP8212383 - DOUILLE D'AMP.FEU AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/3/0/img/56330.jpg)
3 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212818- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/3/img/72193.jpg)
4 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212819- More informationQuantity required : 1 |
||||||
|
5 |
LENS FOR FLASHER-FRONT- RIGHT- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212829- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/3/3/img/56333.jpg)
6 |
LENS FOR FLASHER-FRONT - LEFT- "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2004, 50 RALLY 1995>2004 -AP8212830- More informationQuantity required : 1 |
||||||
|
7 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
|
8 |
AP8212699 - CLIGNOT.AV.DR./ARR.GA. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
9 |
AP8212680 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
10 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
11 |
AP8124352 - FEU ARRIERE AVEC CATADIOPTRE More informationQuantity required : 1 |
||||||
|
12 |
AP8112883 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
13 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 2 |
||||||
|
14 |
AP8212591 - CATADIOPTRE, AMBRE+PLAQUE More informationQuantity required : 2 |
