Vehicle Exploded View - APRILIA RALLY 50 Air 1995-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

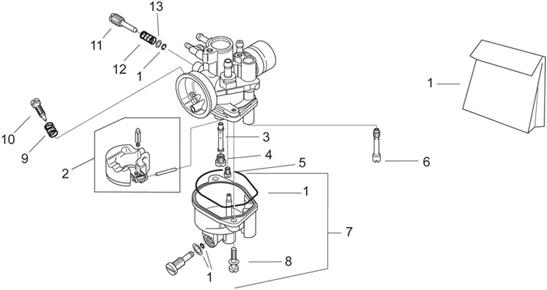

Moteur : 29.21 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.21.PNG)
1 |
AP8206886 - SACHET JOINTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
2 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916- More informationQuantity required : 1 |
||||||
|
3 |
CM106214 - MELANGEUR More informationQuantity required : 1 |
||||||
|
3 |
AP8206707 - GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/0/1/img/56001.jpg)
3 |
AP8206796 - GICLEUR More informationQuantity required : 1 |
||||||
|
3 |
AP8206797 - GICLEUR More informationQuantity required : 1 |
||||||
|
4 |
CM101715 - GICL.MAXI More informationQuantity required : 1 |
||||||
|
4 |
CM101729 - GICLEUR MAXI More informationQuantity required : 1 |
||||||
|
4 |
Jet maximum |
||||||
|
4 |
Jet maximum |
||||||
|
4 |
Jet maximum |
||||||
|
4 |
AP8222680 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
4 |
AP8222682 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
5 |
Gicleur minimum |
||||||
|
5 |
Gicleur minimum |
||||||
|
5 |
Gicleur minimum |
||||||
|
5 |
Gicleur starter |
||||||
|
5 |
CM102107 - GICLEUR STARTER More informationQuantity required : 1 |
||||||
|
6 |
AP8206904 - JET DEMARRAGE More informationQuantity required : 1 |
||||||
|
7 |
AP8206889 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
8 |
288862 - VIS More informationQuantity required : 1 |
||||||
|
9 |
Res.vis rég.air mini |
||||||
|
10 |
Vis rég.air minimum |
||||||
|
10 |
CM107703 - VIS More informationQuantity required : 1 |
||||||
|
11 |
AP8206895 - VIS REG.SOUPAPE GAZ More informationQuantity required : 1 |
||||||
|
12 |
Res.vis rég.soup.gaz |
||||||
|
13 |
AP8206897 - RONDELLE PLATE More informationQuantity required : 1 |
