Vehicle Exploded View - APRILIA RALLY 50 Air 1995-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

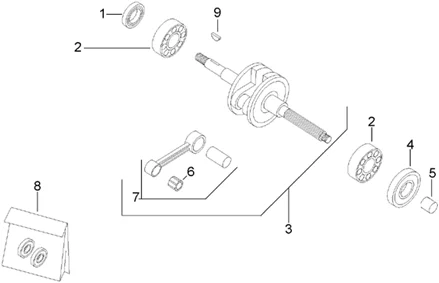

Moteur : 29.15 EMBIELLAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.15.PNG)
1 |
AP8206212 - JOINT SPI More informationQuantity required : 1 |
||||||
|
2 |
AP8509135 - ROULEMENT More informationQuantity required : 2 |
||||||
|
3 |
AP8206501 - EMBIELLAGE AVEC CAGE SUR AXE More informationQuantity required : 1 |
||||||
|
4 |
AP8206213 - JOINT SPI More informationQuantity required : 1 |
||||||
|
5 |
SPACER- FOR CRANKSHAFT "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO, SR, SCARABEO 2 STROKE -AP8206187- More informationQuantity required : 1 |
||||||
|
6 |
AP8206154 - CAGE AXE More informationQuantity required : 1 |
||||||
|
7 |
AP8206223 - BIELLE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/7/4/img/55874.jpg)
8 |
GASKET SEAL RINGS KIT (CRANKSHAFT) "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, AMICO, SONIC, SR (MINARELLI) -AP8206500- More informationQuantity required : 1 |
||||||
|
9 |
AP8206182 - CLAVETTE VOLANT MAGNET More informationQuantity required : 1 |
