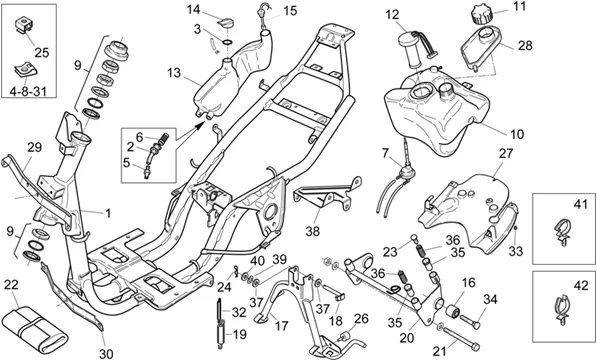

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
2 |
RUBBER SPACER FOR OIL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA 50-125 -AP8102223- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/0/img/56840.jpg)
3 |
GASKET FOR OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA SR 50 1993>2004 -AP8220195- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
5 |
2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
6 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224- More informationQuantity required : 1 |
||||||
7 |
AP8201824 - ROBINET ESSENCE A DEPRESS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 6 |
||||||
|
9 |
AP8203666 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
|
11 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
12 |
AP8212958 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
13 |
AP8230913 - RESERVOIR HUILE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
14 |
OIL TANK CAP "PIAGGIO GENUINE PART "APRILIA - COMMON FOR ALL 50CC SCOOTERS -AP8220421- More informationQuantity required : 1 |
||||||
|
15 |
AP8212481 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
|
16 |
AP8220376 - SILENTBLOC BIELLE More informationQuantity required : 2 |
||||||
|
17 |
AP8232983 - BEQUILLE CENTRALE; More informationQuantity required : 1 |
||||||
|
18 |
AP8221296 - PIVOT BEQUILLE AVEC RONDELLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
19 |
SPRING - FOR CENTRAL STAND"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO -AP8221204- More informationQuantity required : 1 |
||||||
|
21 |
AP8221160 - PIVOT SUPPORT MOTEUR More informationQuantity required : 1 |
||||||
|
22 |
AP8201685 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/2/img/72282.jpg)
23 |
AP8220396 - TIGE More informationQuantity required : 3 |
||||||
|
24 |
AP8201431 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
25 |
AP8221213 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
|
26 |
AP8220239 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
26 |
AP8144277 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 1 |
||||||
|
28 |
AP8220344 - CUVE COLLECTE ESSENCE More informationQuantity required : 1 |
||||||
|
29 |
AP8234081 - SUPPORT TABLIER AVANT; More informationQuantity required : 1 |
||||||
|
30 |
AP8234080 - SUPPORT AVANT REPOSE-PIEDS; More informationQuantity required : 1 |
||||||
|
31 |
AP8201764 - CLIP POUR VIS TARAUD More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
32 |
AP8221211 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
33 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
||||||
|
34 |
AP8221184 - PIVOT FIXATION BIELLETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/4/img/72284.jpg)
35 |
AP8220460 - RONDELLE EN CAOUTCHOUC; More informationQuantity required : 3 |
||||||
|
36 |
AP8221215 - RESSORT BIELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/5/img/56865.jpg)
37 |
AP8220366 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
38 |
AP8234079 - SUPPORT G-BOUE AR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
39 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
40 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
|
41 |
AP8221310 - PASSE-CABLE More informationQuantity required : 5 |
||||||
|
42 |
AP8221311 - PASSE-CABLE More informationQuantity required : 2 |
