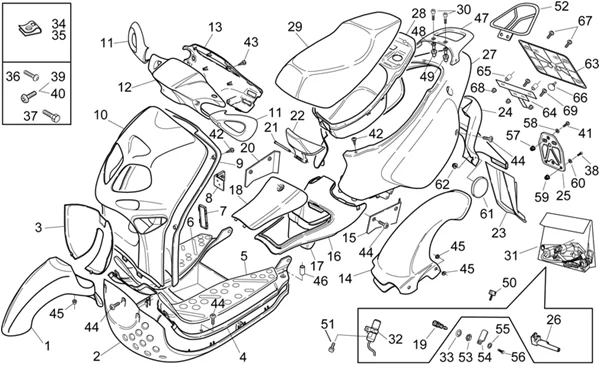

Chassis : 28.04 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.04.PNG)
1 |
AP8226528 - GARDE-BOUE AV BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8249900 - SOUS-REP-PIEDS NOIR; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8238737 - SOUS-REP-PIEDS, AMBRE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8249772 - SOUS-REP-PIEDS ORANGE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8238742 - DESSOUS AMBRE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8238682 - DESSOUS BRONZE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8248461 - SOUS-REP-PIEDS, ROUGE More informationQuantity required : 1 |
|||||||||
|
3 |
AP8226530 - BAVOLET AV, BLEU; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8238868 - PLANCHER REPOSE-PIEDS GRIS; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8248699 - REPOSE-PIEDS BLEU; More informationQuantity required : 1 |
|||||||||
|
5 |
AP8238860 - TAPIS G GRIS; More informationQuantity required : 1 |
|||||||||
|
5 |
AP8248701 - TAPIS G, TRANSPARENT; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8248700 - TAPIS D, TRANSPARENT; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8238859 - TAPIS D GRIS; More informationQuantity required : 1 |
|||||||||
|
7 |
AP8249336 - COUV. DONNEES HOM., BLEU; More informationQuantity required : 1 |
|||||||||
|
7 |
AP8230931 - COUV. DONNEES HOM., NOIR; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
8 |
HELMET HOOK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8201534 - More informationQuantity required : 1 |
|||||||||
|
9 |
AP8249266 - TABLIER INT. BLEU; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8249906 - TABLIER AVANT PEINT GRIS EGYPT; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8268003 - SCUDO ANTERIORE V.NERO OPACO More informationQuantity required : 1 |
|||||||||
|
10 |
AP8268002 - SCUDO ANTERIORE V.GRIGIO EGYPT More informationQuantity required : 1 |
|||||||||
|
10 |
AP8258938 - SCUDO ANTERIORE V.BLU CHIPS More informationQuantity required : 1 |
|||||||||
|
10 |
AP8249916 - TAB. AV NOIR MAT; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8249778 - TABL AV BLEU CHIPS; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8248712 - TAB.AV.NOI.SHIN.; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8239619 - TABLIER AV. BLEU POLO; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8239204 - TABLIER AV BLEU ROI; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8238271 - TABLIER AVANT PEINT NOIR; More informationQuantity required : 1 |
|||||||||
|
11 |
AP8248984 - PROT-MAIN BLEU/PAIRE; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8249777 - COUPOLE, BLEU CHIPS; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8239622 - COUPOLE, BLEU POLO; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8268018 - CUPOLINO V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
12 |
AP8248735 - COUPOLE, GRIS MERCURY; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8248722 - COUPOLE, VERT MILITARY; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8239526 - COUPOLE, NOIR APRILIA; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8239256 - COUPOLE, ORANGE; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8249915 - COUPOLE, NOIR MAT; More informationQuantity required : 1 |
|||||||||
|
13 |
AP8258939 - PLANCIA CRUSCOTTO BLU More informationQuantity required : 1 |
|||||||||
|
14 |
AP8226572 - GARDE-BOUE ARRIERE NOIR; More informationQuantity required : 1 |
|||||||||
|
15 |
AP8249888 - CACHE LAT. G, BLEU; More informationQuantity required : 1 |
|||||||||
|
15 |
AP8249110 - CACHE LAT. G, NOIR SHINING; More informationQuantity required : 1 |
|||||||||
|
15 |
AP8248706 - CACHE LAT. G, GRIS; More informationQuantity required : 1 |
|||||||||
|
15 |
AP8238102 - CACHE LAT. G; More informationQuantity required : 1 |
|||||||||
|
16 |
AP8239201 - TUNNEL PEINT GRIS SAT.; More informationQuantity required : 1 |
|||||||||
|
16 |
AP8248697 - TUNNEL, BLEU; More informationQuantity required : 1 |
|||||||||
|
16 |
AP8238308 - TUNNEL PEINT BLEU; More informationQuantity required : 1 |
|||||||||
|
17 |
AP8231843 - BO?TE A OUTILS, NOIR; More informationQuantity required : 1 |
|||||||||
|
18 |
AP8238309 - COUVERCLE TUNNEL, BLEU; More informationQuantity required : 1 |
|||||||||
|
18 |
AP8248698 - COUV.TUNNEL BL.; More informationQuantity required : 1 |
|||||||||
|
19 |
LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609- More informationQuantity required : 1 |
|||||||||
|
20 |
AP8249887 - CACHE LAT. D, BLEU; More informationQuantity required : 1 |
|||||||||
|
20 |
AP8238516 - CACHE LAT. D, NOIR; More informationQuantity required : 1 |
|||||||||
|
20 |
AP8238690 - CACHE LAT. D, VERT G; More informationQuantity required : 1 |
|||||||||
|
20 |
AP8239207 - CACHE LAT. D, GRIS SAT.; More informationQuantity required : 1 |
|||||||||
|
20 |
AP8239616 - CACHE LAT. D, GRIS SIL; More informationQuantity required : 1 |
|||||||||
|
20 |
AP8249109 - CACHE LAT. D, NOIR SHINING; More informationQuantity required : 1 |
|||||||||
|
21 |
AP8221173 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
|||||||||
|
22 |
AP8248707 - ATTACHE STRUCT.SELLE, NOIR SH.; More informationQuantity required : 1 |
|||||||||
|
22 |
AP8231605 - ATTACHE STRUCT.SELLE, NOIR; More informationQuantity required : 1 |
|||||||||
|
22 |
AP8239196 - ATTACHE STRUCT.SELLE, BLEU; More informationQuantity required : 1 |
|||||||||
|
22 |
AP8239613 - ATTACHE STRUCT.SELLE, BLEU; More informationQuantity required : 1 |
|||||||||
|
22 |
AP8239252 - ATTACHE STRUCT.SELLE, ORANGE; More informationQuantity required : 1 |
|||||||||
|
22 |
AP8249901 - ATTACHE STRUCT.SELLE BLEU; More informationQuantity required : 1 |
|||||||||
|
23 |
AP8226531 - BAVETTE AR.BL.; More informationQuantity required : 1 |
|||||||||
|
23 |
AP8231480 - BAVOLET AR, NOIR; More informationQuantity required : 1 |
|||||||||
|
24 |
AP8258937 - PORTATARGA/SUPP.FANALE More informationQuantity required : 1 |
|||||||||
|
24 |
AP8226529 - SUPPORT FEU/PORTE-T. BLEU; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/8/0/8/img/58808.jpg)
25 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON FOR 50CC APRILIA -AP8249558- More informationQuantity required : 1 |
|||||||||
|
26 |
AP8202362 - SERRATURA SELLA More informationQuantity required : 1 |
|||||||||
|
27 |
AP8239261 - QUEUE PERCEE, BLEU ROI; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8268020 - CODONE V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
27 |
AP8249918 - QUEUE PERCEE, NOIR MAT; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8249917 - QUEUE CAR. P.NOIR MAT; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8249908 - QUEUE PERCEE, GRIS EGYPT; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8249779 - Q.CAREN. BLEU CHIPS; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238315 - QUEUE PERCEE, BLEU; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238684 - QUEUE, VERTE G; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8248737 - QUEUE, GRIS MERCURY; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8239621 - QUEUE PERCEE, B POLO; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238731 - QUEUE, AMBRE; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8239200 - QUEUE, BLEU ROYAL; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238741 - QUEUE PERCEE, AMBRE; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238770 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8248725 - QUEUE PERCEE, VERT MILITARY; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8248724 - QUEUE, VERT MILITARY; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238449 - QUEUE PERCEE, NOIRE More informationQuantity required : 1 |
|||||||||
|
27 |
AP8238219 - QUEUE PERCEE, ROUGE More informationQuantity required : 1 |
|||||||||
|
27 |
AP8231832 - QUEUE, ROUGE; More informationQuantity required : 1 |
|||||||||
|
27 |
AP8249907 - QUEUE, GRIS EGYPT; More informationQuantity required : 1 |
|||||||||
|
28 |
AP8230923 - COMPART.P-CASQUE; More informationQuantity required : 1 |
|||||||||
|
29 |
AP8229149 - SELLE CPL LONGUE, NOIR; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/9/img/71859.jpg)
30 |
SCREW - FOR BAR ENDS"PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE APRILIA MOTORBIKES -AP8150324 More informationQuantity required : 2 |
|||||||||
|
31 |
AP8201845 - KIT SERRURE More informationQuantity required : 1 |
|||||||||
|
32 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 50 SR, RALLY, GULLIVER -AP8201600- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.JPG)
33 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
34 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
|||||||||
|
35 |
AP8201764 - CLIP POUR VIS TARAUD More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
36 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
37 |
AP8152277 - VIS BRIDE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
38 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
39 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
40 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
41 |
AP8152268 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
42 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 25 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
43 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
44 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
45 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
|||||||||
|
46 |
AP8221046 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
|
47 |
AP8268022 - MANIGLIONE V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
47 |
AP8238220 - POIGNEE ROUGE More informationQuantity required : 1 |
|||||||||
|
47 |
AP8248710 - POIGNEE, NOIR SHINING; More informationQuantity required : 1 |
|||||||||
|
47 |
AP8248734 - POIGNEE, MERCURY GRIS; More informationQuantity required : 1 |
|||||||||
|
47 |
AP8249776 - POIGNEE BLEU CHIPS; More informationQuantity required : 1 |
|||||||||
|
47 |
AP8249904 - POIGNEE, GRIS EGYPT; More informationQuantity required : 1 |
|||||||||
|
47 |
AP8249914 - POIGNEE, NOIR MAT; More informationQuantity required : 1 |
|||||||||
|
48 |
AP8221228 - DOUILLE POIGNEE More informationQuantity required : 2 |
|||||||||
|
49 |
AP8220423 - CAOUTCHOUC POIGNEE; More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.JPG)
50 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
51 |
AP8152140 - VIS A ARRACHEMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
53 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
54 |
FUEL TRAPDOOR LEVER "PIAGGIO GENUINE PART" APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX -AP8201620- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
55 |
STAR WASHER (FOR LOCKS) "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250-500 2003>2012, RS 125 2011>2017, RS 50 2006>2016, SR 50 1993>2014 -AP8201748- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
56 |
AP8201749 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
57 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
58 |
AP8150382 - RONDELLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
59 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
60 |
AP8150158 - RONDELLE More informationQuantity required : 3 |
|||||||||
|
61 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 2 |
|||||||||
|
62 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
63 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
65 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
66 |
AP8120001 - CAOUTCHOUC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
67 |
AP8152280 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
68 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
69 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
|||||||||
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004.PNG)
-
28.01 Chassis
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.01.PNG)
-
28.02 Fourche I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.02.PNG)
-
28.03 Fourche II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.03.PNG)
-
28.04 Carrosserie
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.04.PNG)
-
28.05 Tableau de bord
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.05.PNG)
-
28.07 Roue Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.07.PNG)
-
28.08 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.08.PNG)
-
28.09 Feux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.09.PNG)
-
28.10 Feux USA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.10.PNG)
-
28.11 Circuit electrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.11.PNG)
-
28.12 Décalco manuel d’instr.et plaquettes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.12.PNG)
-
28.24 Air secondaire
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_28.24.PNG)
-
29.06 Moteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.06.PNG)
-
29.13 Carters centraux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.13.PNG)
-
29.14 Groupe culasse
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.14.PNG)
-
29.15 Embiellage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.15.PNG)
-
29.16 Couvercles - kick de demarrage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.16.PNG)
-
29.17 VARIATEUR - REDUCTION FINALE
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.17.PNG)
-
29.18 Embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.18.PNG)
-
29.19 Alimentation - Pompe Huil
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.19.PNG)
-
29.20 Carburateur I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.20.PNG)
-
29.21 Carburateur II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.21.PNG)
-
29.22 Volant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.22.PNG)
-
29.23 Groupe allumage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.23.PNG)
-
30.25 Acc. - Pare-brise
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_30.25.PNG)
-
30.26 Acc top cases,valises lat
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_30.26.PNG)
-
30.27 Acc. - Antivol
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_30.27.PNG)
