Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

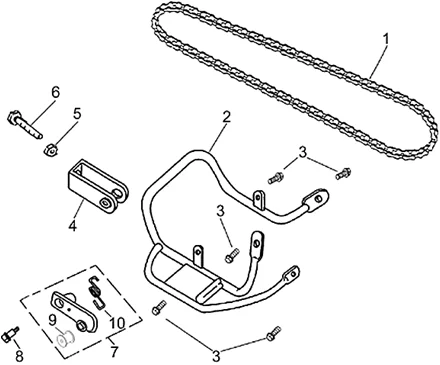

Chassis : 28.31 CHAÎNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.31.PNG)
1 |
AP8910882 - CATENA 520 More informationQuantity required : 1 |
||||||
|
3 |
AP8910434 - VITE TE FLANG. M8X16 More informationQuantity required : 5 |
||||||
|
4 |
AP8910885 - REGISTRO More informationQuantity required : 1 |
||||||
|
5 |
AP8910375 - DADO M8 More informationQuantity required : 2 |
||||||
|
6 |
AP8911037 - VITE TE FLANG.M8X60 More informationQuantity required : 2 |
||||||
|
8 |
AP8911011 - VITE More informationQuantity required : 1 |
||||||
|
10 |
AP8910884 - MOLLA More informationQuantity required : 1 |
