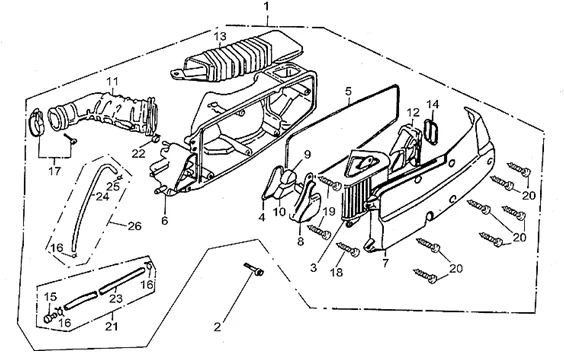

Chassis : 28.14 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.14.PNG)
3 |
AP8910710 - FILTRO ARIA More informationQuantity required : 1 |
||||||
|
4 |
AP8910713 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
5 |
AP8910714 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
6 |
AP8910711 - CASSA FILTRO More informationQuantity required : 1 |
||||||
|
7 |
AP8910712 - COPERCHIO CASSA FILTRO More informationQuantity required : 1 |
||||||
|
8 |
AP8910716 - COPERCHIO More informationQuantity required : 1 |
||||||
|
9 |
AP8910717 - FILTRO SFIATO OLIO A More informationQuantity required : 1 |
||||||
|
10 |
AP8910718 - FILTRO SFIATO OLIO B More informationQuantity required : 1 |
||||||
|
12 |
AP8910720 - CONVOGLIATORE ARIA More informationQuantity required : 1 |
||||||
|
13 |
AP8910721 - MANICOTTO More informationQuantity required : 1 |
||||||
|
14 |
AP8910722 - PROTEZIONE More informationQuantity required : 1 |
||||||
|
15 |
AP8910724 - TAPPO DI CHIUSURA More informationQuantity required : 1 |
||||||
|
17 |
AP8910653 - FASCETTA More informationQuantity required : 1 |
||||||
|
19 |
AP8911048 - VITE AUTOF.M4X12 More informationQuantity required : 2 |
||||||
|
21 |
AP8910723 - TUBO SFIATO More informationQuantity required : 1 |
||||||
|
22 |
AP8911077 - FASCETTA More informationQuantity required : 1 |
||||||
|
23 |
AP8911074 - TUBO 8X12X240 More informationQuantity required : 1 |
||||||
|
24 |
AP8910610 - TUBO SFIATO 6X8,5 More informationQuantity required : 1 |
||||||
|
26 |
AP8910609 - TUBO SFIATO CPL. More informationQuantity required : 1 |
