Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

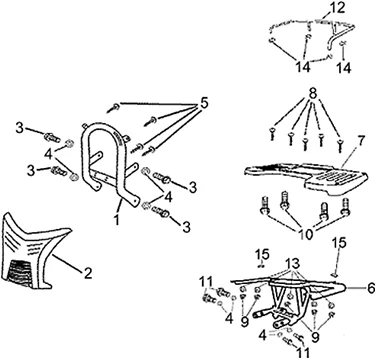

Chassis : 28.17 AV/AR PORTE-BAGAGES-PROT.HP
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.17.PNG)
2 |
AP8910947 - PROTEZIONE TELAIETTO ANT. More informationQuantity required : 1 |
||||||
|
3 |
AP8910434 - VITE TE FLANG. M8X16 More informationQuantity required : 4 |
||||||
|
5 |
AP8910365 - VITE AUTOF.M5X16 More informationQuantity required : 4 |
||||||
|
7 |
AP8911005 - PORTAPACCHI POST. More informationQuantity required : 1 |
||||||
|
8 |
AP8911125 - VITE TE FLANG.M6X32 More informationQuantity required : 5 |
||||||
|
11 |
AP8910433 - VITE TE M8X12 More informationQuantity required : 4 |
||||||
|
12 |
AP8911007 - PROTEZIONE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
