Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

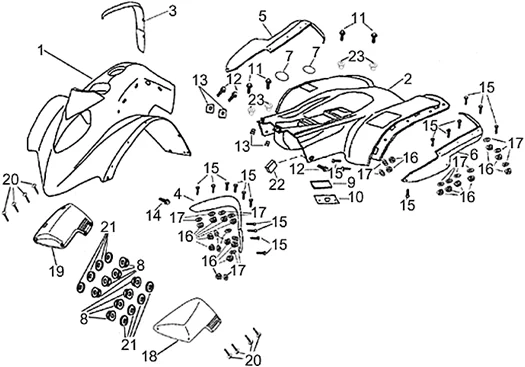

Chassis : 28.20 CARROSSERIE HP
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.20.PNG)
1 |
AP8910993 - SCUDO ANT.BLU More informationQuantity required : 1 |
||||||
|
2 |
AP8910987 - SCUDO POST.GRIGIO More informationQuantity required : 1 |
||||||
|
3 |
AP8910995 - PARASPRUZZI ANT.DX More informationQuantity required : 1 |
||||||
|
4 |
AP8910997 - PARASPRUZZI ANT.SX More informationQuantity required : 1 |
||||||
|
5 |
AP8910989 - PARASPRUZZI POST.DX More informationQuantity required : 1 |
||||||
|
6 |
AP8910990 - PARASPRUZZI POST.DX More informationQuantity required : 1 |
||||||
|
7 |
AP8911029 - O-RING F45,7XF3,5 More informationQuantity required : 2 |
||||||
|
10 |
AP8910298 - PROTEZIONE More informationQuantity required : 1 |
||||||
|
12 |
AP8910462 - VITE AUTOF. M6X16 More informationQuantity required : 4 |
||||||
|
13 |
AP8910308 - PIASTRINA M6 More informationQuantity required : 4 |
||||||
|
14 |
AP8910353 - VITE TE FLANG. More informationQuantity required : 2 |
||||||
|
15 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 48 |
||||||
|
17 |
AP8910379 - ROSETTA PIANA More informationQuantity required : 48 |
||||||
|
18 |
AP8910733 - PRESA ARIA SX More informationQuantity required : 1 |
||||||
|
19 |
AP8910731 - PRESA ARIA DX More informationQuantity required : 1 |
