Vehicle Exploded View - APRILIA QUASAR 125 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

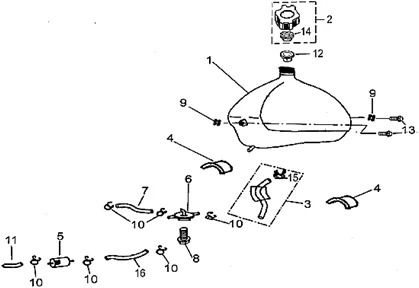

Chassis : 28.23 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/309/Quasar_125_2003_28.23.PNG)
Search
1 |
AP8910725 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
2 |
AP8910727 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
3 |
AP8911076 - TUBO More informationQuantity required : 1 |
||||||
|
12 |
AP8910729 - FILTRO More informationQuantity required : 1 |
||||||
|
14 |
AP8910728 - SFIATO More informationQuantity required : 1 |
