Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

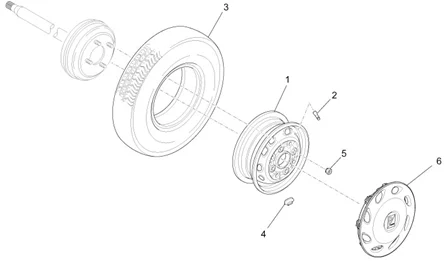

Suspensions - roues : 04.13 ROUES AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_04.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/0/1/3/img/120013.JPG)
1 |
WHEEL 12" "PIAGGIO GENUINE PART" PORTER, CARGO -4261187Z01000- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/9/6/1/img/142961.jpg)
1 |
WHEEL (4,5 J 13") "PIAGGIO GENUINE PART" PORTER -56591R5- More informationQuantity required : 4 |
||||||
1 |
B005508 - JANTE ROUE More informationQuantity required : 4 |
||||||
|
2 |
9004902019000 - SOUPAPE More informationQuantity required : 4 |
||||||
|
3 |
1E003250 - PNEU TUBELESS 155/80 R13 More informationQuantity required : 5 |
||||||
|
3 |
1E003250 - PNEU TUBELESS 155/80 R13 More informationQuantity required : 5 |
||||||
|
3 |
TUBELESS TYRE 155R12C "PIAGGIO GENUINE PART" PORTER, CARGO -56501R- More informationQuantity required : 5 |
||||||
|
4 |
CM037412 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037411 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037410 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037409 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037408 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037407 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037406 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037405 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037404 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037403 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
4 |
CM037402 - CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/5/img/158425.jpg)
5 |
1E002849 - ECROU More informationQuantity required : 16 |
||||||
|
5 |
1E002849 - ECROU More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/1/1/img/117511.jpg)
6 |
WHEEL CAP "PIAGGIO GENUINE PART" PORTER 1992>2009 -B000992- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/8/8/img/117988.jpg)
6 |
B005651 - CACHE ROUE More informationQuantity required : 4 |
