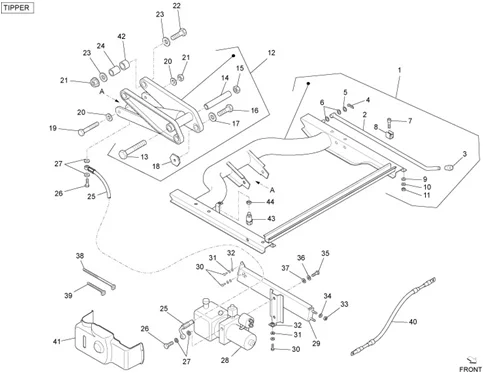

Châssis - parties plastiques - carrosseries : 02.22 SYSTÈME DE BASCULEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_02.22.PNG)
1 |
B004285 - SUPPORT More informationQuantity required : 1 |
||||||
|
2 |
263674 - ASTA ** More informationQuantity required : 1 |
||||||
|
3 |
264887 - BOUCHON More informationQuantity required : 1 |
||||||
|
4 |
B005668 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.JPG)
5 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/6/img/65706.jpg)
6 |
118745 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
D9321955016 - VIS More informationQuantity required : 1 |
||||||
|
8 |
264268 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
10 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
11 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
|
12 |
5672605 - PANTOGRAPHE More informationQuantity required : 1 |
||||||
|
13 |
566056 - PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/6/8/img/112268.jpg)
15 |
9004178043000 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
17 |
012540 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
264395 - VIS More informationQuantity required : 1 |
||||||
|
20 |
264190 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/5/img/110475.jpg)
21 |
264878 - ECROU More informationQuantity required : 3 |
||||||
|
22 |
264394 - VIS More informationQuantity required : 2 |
||||||
|
23 |
264193 - RONDELLE More informationQuantity required : 4 |
||||||
|
25 |
B004955 - TUYAU HUILE More informationQuantity required : 1 |
||||||
|
26 |
565057 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/6/5/img/111865.JPG)
27 |
218623 - JOINT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/5/4/0/img/123540.JPG)
28 |
DISTRIBUTOR PUMP ASSY "PIAGGIO GENUINE PART" PIAGGIO PORTER PICK-UP -56580R- More informationQuantity required : 1 |
||||||
|
29 |
B004134 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
31 |
003058 - RONDELLE S00305800 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
32 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 3 |
||||||
|
33 |
709052 - ECROU More informationQuantity required : 2 |
||||||
|
34 |
615792 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
35 |
031153 - BOULON S03115300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
36 |
016410 - ANNEAU More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
37 |
016626 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
38 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
39 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
|
40 |
1D001511 - CABLE More informationQuantity required : 1 |
||||||
|
41 |
611602 - COPERT.PROT.PO More informationQuantity required : 1 |
||||||
|
42 |
264735 - MOYEU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/8/9/img/115889.jpg)
43 |
STOP SWITCH "PIAGGIO GENUINE PART" APE, PORTER, CARGO, HEXAGONE, X9 ANCIENNE GENERATION -B023289- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/4/img/65824.jpg)
44 |
196750 - ECROU CONTACT STOP More informationQuantity required : 1 |
