Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

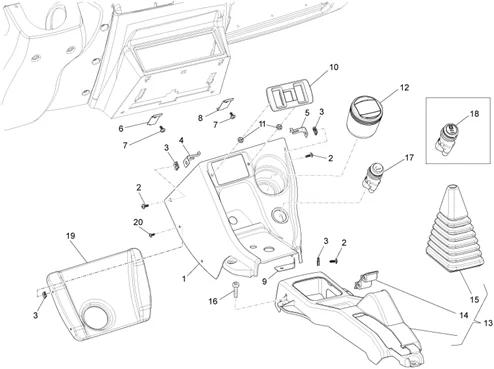

Guidon/direction : 03.05 TUNNEL CENTRAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_03.05.PNG)
1 |
B005183 - TUNNEL More informationQuantity required : 1 |
||||||
|
1 |
B023017 - TUNNEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
2 |
B004853 - VIS More informationQuantity required : 3 |
||||||
|
3 |
9004183025000 - ECROU More informationQuantity required : 7 |
||||||
|
4 |
B004459 - EQUERRE More informationQuantity required : 1 |
||||||
|
5 |
B004317 - EQUERRE More informationQuantity required : 1 |
||||||
|
6 |
B004315 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
7 |
015859 - VIS More informationQuantity required : 2 |
||||||
|
8 |
B004316 - EQUERRE More informationQuantity required : 1 |
||||||
|
9 |
B004318 - EQUERRE More informationQuantity required : 1 |
||||||
|
10 |
B004325 - EQUERRE INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
11 |
181351 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
12 |
B004319 - CENDRIER More informationQuantity required : 1 |
||||||
|
13 |
615093 - BOITE More informationQuantity required : 1 |
||||||
|
14 |
5882587Z01030 - SAC More informationQuantity required : 1 |
||||||
|
15 |
615430 - PARE-POUSSIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/8/img/66288.jpg)
16 |
296170 - BOULON More informationQuantity required : 3 |
||||||
|
17 |
565429 - ALLUME CIGARE More informationQuantity required : 1 |
||||||
|
18 |
B007157 - PRISE ELECTRIQUE More informationQuantity required : 1 |
||||||
|
19 |
B007918 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
20 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 4 |
