Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

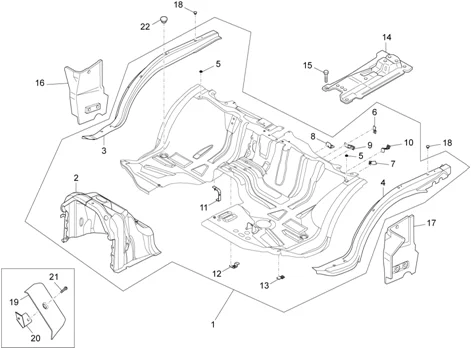

Châssis - parties plastiques - carrosseries : 02.35 PANNEAU DU PLANCHER AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_02.35.PNG)
1 |
B0073795 - PLANCHER More informationQuantity required : 1 |
||||||
|
2 |
B0073805 - PANEL RADIATEUR More informationQuantity required : 1 |
||||||
|
3 |
D5823187Z01 - ELEMENT More informationQuantity required : 1 |
||||||
|
4 |
D5823287Z015 - ELEMENT More informationQuantity required : 1 |
||||||
|
5 |
5852387Z01000 - CROCHET More informationQuantity required : 2 |
||||||
|
6 |
D4445787Z01 - SUPPORT More informationQuantity required : 1 |
||||||
|
11 |
D9004463232 - More informationQuantity required : 1 |
||||||
|
12 |
5375187Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
13 |
4738287Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
5510387Z03000 - PLAQUE More informationQuantity required : 1 |
||||||
|
15 |
D9166140612 - BOULON More informationQuantity required : 2 |
||||||
|
16 |
5824187Z02000 - PANNEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/3/6/9/img/118369.JPG)
17 |
5824287Z02000 - PANNEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/9/0/img/110490.JPG)
18 |
9004874011000 - BOUCHON More informationQuantity required : 8 |
||||||
|
19 |
B004252 - REPOSE-PIED GAUCHE More informationQuantity required : 1 |
||||||
|
20 |
B004254 - EQUERRE REPOSE-PIED GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
21 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 1 |
