Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

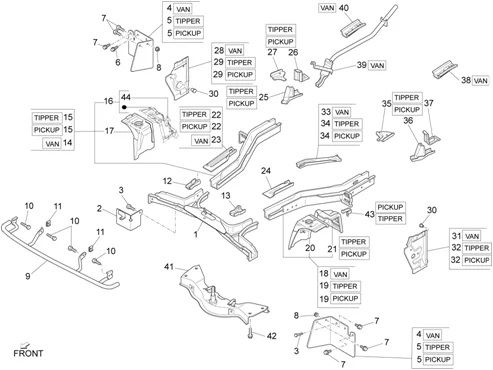

Châssis - parties plastiques - carrosseries : 02.02 CHÂSSIS/CAISSE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_02.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/9/7/6/img/123976.jpg)
1 |
FRONT CROSS MEMBER "PIAGGIO GENUINE PART" PORTER -1E0000185- More informationQuantity required : 1 |
||||||
2 |
7661987Z02000 - GARDE-BOUE More informationQuantity required : 1 |
||||||
|
3 |
D9004159410 - VIS More informationQuantity required : 5 |
||||||
|
4 |
7662187Z02000 - GARDE-BOUE More informationQuantity required : 2 |
||||||
|
5 |
7662187Z01000 - GARDE-BOUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/7/6/8/img/111768.jpg)
6 |
264462 - BOULON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.JPG)
7 |
CM288112 - VIS More informationQuantity required : 6 |
||||||
|
8 |
D9004179081 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/1/6/img/120816.jpg)
9 |
COOLANT RADIATOR PROTECTION "PIAGGIO GENUINE PART" PORTER -5290787Z03000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/9/7/img/110997.jpg)
11 |
D9004181008 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
5713387Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
13 |
D5713487Z01 - PROTECTION More informationQuantity required : 1 |
||||||
|
14 |
B0251945 - CACHE ROUE DRT More informationQuantity required : 1 |
||||||
|
15 |
B0250975 - CACHE ROUE DRT More informationQuantity required : 1 |
||||||
|
16 |
B023604 - GARDE-BOUE DR. More informationQuantity required : 1 |
||||||
|
21 |
5370287Z02000 - PROTECTION More informationQuantity required : 1 |
||||||
|
22 |
B0060535 - SERRURE TRAVERSE AV.DRT. More informationQuantity required : 1 |
||||||
|
23 |
5711387Z02000 - PLAQUE More informationQuantity required : 1 |
||||||
|
24 |
B0233195 - PLAQUE More informationQuantity required : 1 |
||||||
|
25 |
5170387Z02000 - SUPPORT More informationQuantity required : 1 |
||||||
|
27 |
D5822387Z025 - PROTECTION More informationQuantity required : 1 |
||||||
|
28 |
5820387Z02000 - MONTANT More informationQuantity required : 1 |
||||||
|
29 |
5820387Z04000 - MONTANT More informationQuantity required : 1 |
||||||
|
30 |
9004874013000 - BOUCHON More informationQuantity required : 3 |
||||||
|
31 |
5820487Z04000 - MONTANT More informationQuantity required : 1 |
||||||
|
32 |
5820487Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
33 |
B0041865 - SERRURE DRT CHASSIS More informationQuantity required : 1 |
||||||
|
34 |
B0041855 - SERRURE GAU CHASSIS More informationQuantity required : 1 |
||||||
|
35 |
D5822487Z02 - PROTECTION More informationQuantity required : 1 |
||||||
|
36 |
5170487Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
38 |
5131687Z02000 - RINFORZO More informationQuantity required : 1 |
||||||
|
39 |
567017 - PLATE S/A SIDE FRAME R More informationQuantity required : 1 |
||||||
|
40 |
5131587Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
41 |
658993 - TRAVERSE More informationQuantity required : 1 |
||||||
|
42 |
9004119860000 - BOULON More informationQuantity required : 4 |
||||||
|
43 |
5811787Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
44 |
B023603 - EQUERRE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
