Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

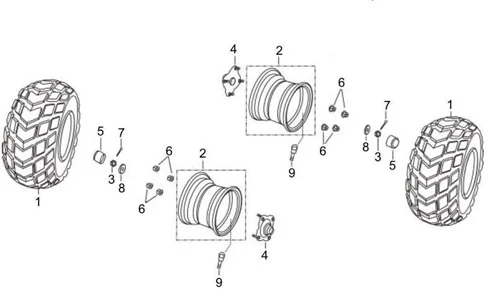

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/188/Oregon_250CC_2007-2010_04.12.PNG)
1 |
A5D-54311-00-00 - PNEU More informationQuantity required : 2 |
||||||
|
2 |
A4A-54210-00-03 - JANTE ROUE AV. More informationQuantity required : 2 |
||||||
|
3 |
A4A-54266-00-00 - ECROU More informationQuantity required : 2 |
||||||
|
4 |
A4A-54223-00-02 - MOYEU ROUE More informationQuantity required : 2 |
||||||
|
5 |
A1A-53268-00-00 - BOUCHON ECROU More informationQuantity required : 2 |
||||||
|
6 |
A4A-54267-00-00 - ECROU More informationQuantity required : 8 |
||||||
|
8 |
A1A-54256-00-00 - RONDELLE More informationQuantity required : 2 |
||||||
|
9 |
A1A-53322-00-00 - TIGE More informationQuantity required : 2 |
