Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

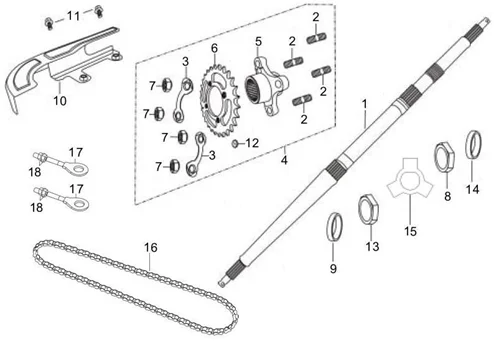

Moteur : 01.28 TRANSMISSION ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/188/Oregon_250CC_2007-2010_01.28.PNG)
1 |
A5A-54511-00-10 - ESSIEU ROUE ARR. More informationQuantity required : 1 |
||||||
|
2 |
A4A-26957-00-00 - BULLONE More informationQuantity required : 4 |
||||||
|
3 |
A4A-26958-00-00 - RONDELLE More informationQuantity required : 2 |
||||||
|
4 |
A4A-26950-00-00 - ESSIEU More informationQuantity required : 1 |
||||||
|
5 |
A4A-26955-00-00 - FLANGIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/3/6/1/img/94361.jpg)
6 |
REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" QUAD GILERA 250 OREGON -A4A-26930-00-00- More informationQuantity required : 1 |
||||||
|
8 |
A4A-54524-00-01 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
A5A-54523-00-00 - COLLIER More informationQuantity required : 1 |
||||||
|
10 |
A4A-26942-00-00 - CARTER CHAINE More informationQuantity required : 1 |
||||||
|
12 |
A4A-34126-00-00 - CAPTEUR More informationQuantity required : 1 |
||||||
|
13 |
A4A-54524-00-01 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
A9A-54523-00-00 - COLLIER More informationQuantity required : 1 |
||||||
|
15 |
A4A-54537-00-01 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/3/6/7/img/94367.jpg)
16 |
DRIVE CHAIN FOR QUAD "PIAGGIO GENUINE PART" GILERA OREGON 250 2007>2010 -A4A-26960-00-03- More informationQuantity required : 1 |
||||||
|
17 |
A4A-56471-00-00 - DOIGT More informationQuantity required : 2 |
