Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

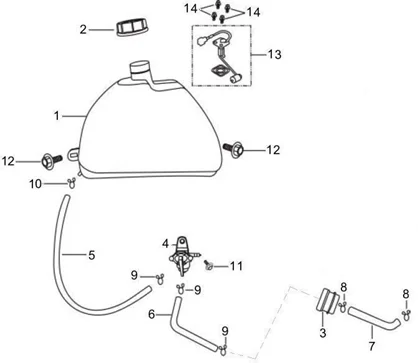

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/188/Oregon_250CC_2007-2010_02.47.PNG)
2 |
A4A-62210-00-00 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
A1A-62410-00-00 - FILTRE More informationQuantity required : 1 |
||||||
|
4 |
A1B-62310-00-00 - ROBINET ESSENCE More informationQuantity required : 1 |
||||||
|
5 |
A4A-62371-00-10 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
6 |
A4A-62372-00-10 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
7 |
A9A-62373-00-00 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
13 |
A4A-62510-00-10 - JAUGE More informationQuantity required : 1 |
