Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

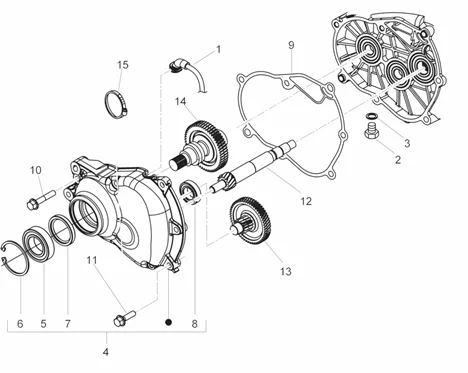

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/188/Oregon_250CC_2007-2010_01.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/0/img/68940.jpg)
1 |
830862 - RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
2 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
3 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/1/2/6/img/174126.JPG)
4 |
1A0198835 - GEAR BOX WITH I.P. More informationQuantity required : 1 |
||||||
|
4 |
1A0198835 - GEAR BOX WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/3/img/139393.jpg)
5 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A005376R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/5/img/68825.jpg)
6 |
CIRCLIP -829206- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
7 |
BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/9/img/68939.jpg)
8 |
SEAL RING GASKET-FOR WHEEL HUB (38X50X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -83082R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/9/img/69549.jpg)
9 |
REDUCING SYSTEM GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 1252-250-300 -847931- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/1/img/72731.jpg)
10 |
B016806 - VIS M8X40 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
11 |
SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/6/img/70506.jpg)
12 |
FAN PULLEY SHAFT "PIAGGIO GENUINE PART" (14 TEETH) 125-250-300 MP3, BEVERLY, VESPA GTS, X7, 250 X9, X8, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO -8738755- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/4/img/69164.JPG)
13 |
DRIVE SHAFT-INTERMEDIATE "PIAGGIO GENUINE PART" PIAGGIO 250-300 MP3, 250 X9, 300 BEVERLY/GILERA 250 NEXUS -8407685- More informationQuantity required : 1 |
||||||
14 |
850660 - ESSIEU ROUE ARR. More informationQuantity required : 1 |
||||||
|
15 |
827277 - COLLIER More informationQuantity required : 1 |
