Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

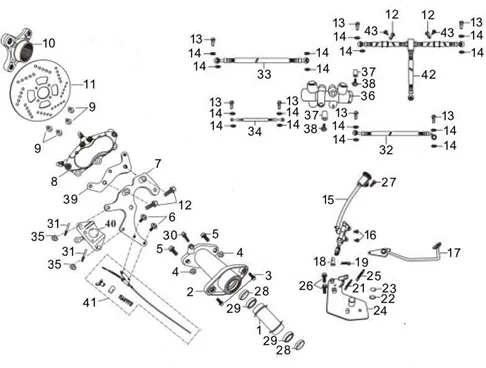

Instalation du freins - transmisisons : 05.04 SYSTÈME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/188/Oregon_250CC_2007-2010_05.04.PNG)
1 |
A5A-54522-00-00 - SPACER More informationQuantity required : 1 |
||||||
|
2 |
A5A-54521-00-20 - ESSIEU More informationQuantity required : 1 |
||||||
|
3 |
95800-12028-02 - BULLONE More informationQuantity required : 2 |
||||||
|
5 |
92000-12050-02 - BULLONE More informationQuantity required : 2 |
||||||
|
7 |
A9A-56081-00-00 - SUPPORT More informationQuantity required : 1 |
||||||
|
8 |
A9A-56080-00-00 - ETRIER DE FREIN More informationQuantity required : 1 |
||||||
|
9 |
A5A-56037-00-00 - BULLONE More informationQuantity required : 4 |
||||||
|
10 |
A5A-56034-00-00 - SUPPORT More informationQuantity required : 1 |
||||||
|
11 |
A5A-56033-00-00 - DISQUE FREIN More informationQuantity required : 1 |
||||||
|
13 |
A1A-56027-00-10 - BOULON More informationQuantity required : 6 |
||||||
|
14 |
94101-10144-50 - RONDELLE More informationQuantity required : 12 |
||||||
|
15 |
A9D-56050-00-00 - MA?TRE CYLINDRE More informationQuantity required : 1 |
||||||
|
17 |
A9D-59610-00-00 - CROCHET DE FREIN More informationQuantity required : 1 |
||||||
|
21 |
A5A-59652-00-00 - RESSORT More informationQuantity required : 1 |
||||||
|
24 |
A5A-56035-00-10 - SUPPORT More informationQuantity required : 1 |
||||||
|
28 |
91201-42062-08 - JOINT SPIE More informationQuantity required : 2 |
||||||
|
29 |
96120-06007-20 - DOUILLE More informationQuantity required : 2 |
||||||
|
31 |
A1A-56029-00-00 - BOULON More informationQuantity required : 2 |
||||||
|
32 |
A9D-56053-00-00 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
33 |
A9D-56063-00-00 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
34 |
A9D-56073-00-00 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
36 |
A9D-55030-00-00 - TIGE More informationQuantity required : 1 |
||||||
|
37 |
A9D-55035-00-00 - JOINT More informationQuantity required : 2 |
||||||
|
39 |
A9A-56082-00-01 - SUPPORT More informationQuantity required : 1 |
||||||
|
40 |
A9A-56090-00-01 - ETRIER DE FREIN More informationQuantity required : 1 |
||||||
|
41 |
A9A-68251-00-01 - TRANSMISSION DE FREIN More informationQuantity required : 1 |
||||||
|
42 |
A9D-56043-00-01 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
44 |
A5A-56043-00-00 - CANALISATION FREINS More informationQuantity required : 1 |
