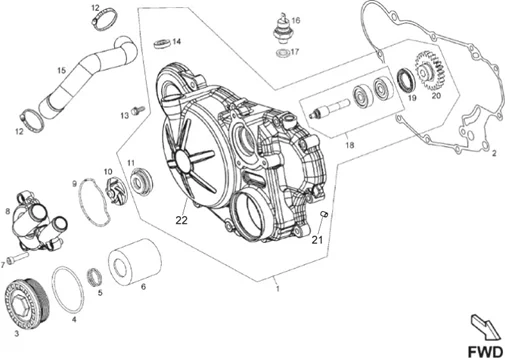

Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)

	P2R reference	70393
	Maker reference	8717035

8717035 - COVER

	P2R reference	70681
	Maker reference	878241

GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 125 RX 2018>, SX 2018>, RS 2011>, TUONO 2017> -878241

	P2R reference	70434
	Maker reference	872626

872626 - OIL FILTER COVER

	P2R reference	72620
	Maker reference	AP9150355

O'RING GASKET FOR OIL FILTER COVER "PIAGGIO GENUINE PART" 350 BEVERLY, X10/APRILIA125 RS, RX, SX -AP9150355-

	P2R reference	72618
	Maker reference	AP9150167

OIL FILTER FIXING SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, RX, SX, 450 RXV, SXV -AP9150167-

	P2R reference	70518
	Maker reference	874081

OIL FILTER "PIAGGIO GENUINE PART" APRILIA 125 RS4 2011>, TUONO 2017> -874081

	P2R reference	127168
	Maker reference	1A003115

1A003115 - VIS M5X25

	P2R reference	70355
	Maker reference	871354

WATER PUMP COVER "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, TUONO -871354-

	P2R reference	70361
	Maker reference	871418

871418 - ANNEAU

	P2R reference	70356
	Maker reference	871358

871358 - AXE

	P2R reference	68876
	Maker reference	82991R

WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	66367
	Maker reference	414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838

	P2R reference	69449
	Maker reference	847075

GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075-

	P2R reference	70375
	Maker reference	871450

871450 - TUYAU

	P2R reference	67933
	Maker reference	1D001138

SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138

	P2R reference	66703
	Maker reference	486075

GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075-

	P2R reference	70358
	Maker reference	8713725

WATER PUMP SHAFT "PIAGGIO GENUINE PART" APRILIA 125 RS 2011>, TUONO 2017>, SX, RX 2017> -8713725-

	P2R reference	68801
	Maker reference	82897R

WATER PUMP GASKET (20X30X5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82897R-

	P2R reference	70359
	Maker reference	871374

871374 - ENGRENAGE D'AXE

	P2R reference	189173
	Maker reference	871704

871704 - COUVERCLE FRICTION
