Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

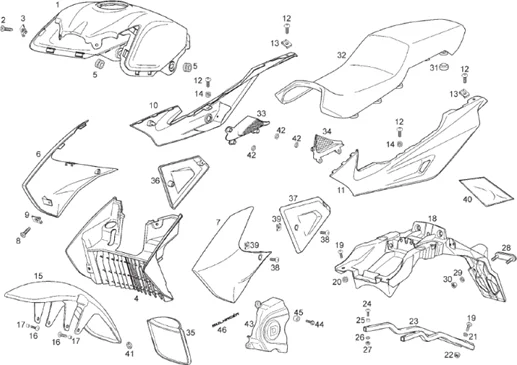

Cadre : 66.05 CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1112/Mulhacen_125_4T_E3_2010_(EMEA)_66.05.png)
1 |
86351600WG25 - COUVRE RESERVOIR More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
2 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
3 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 0 |
|||||||||
|
4 |
863510 - GRILLE More informationQuantity required : 0 |
|||||||||
|
5 |
00H00501761 - SILENTBLOC More informationQuantity required : 0 |
|||||||||
|
6 |
86351100WN35 - COUVERCLE RESERVOIR ESSENCE D. More informationQuantity required : 0 |
|||||||||
|
7 |
86351200WN35 - COUVERCLE RESERVOIR ESSENCE G. More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 0 |
|||||||||
|
9 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 0 |
|||||||||
|
10 |
86351400WG25 - COUVERCLE ARRIERE D. More informationQuantity required : 0 |
|||||||||
|
11 |
86351300WG25 - COUVERCLE ARRIERE G. More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
12 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 0 |
|||||||||
|
14 |
00H04400711 - ECROU More informationQuantity required : 0 |
|||||||||
|
15 |
|
|||||||||
|
16 |
00G03600991 - BOULON SERRAGE TURBINE H.(6X16 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/7/img/65337.jpg)
17 |
SPACER- FOR REAR SIDE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00N01000821- More informationQuantity required : 0 |
|||||||||
|
18 |
863515 - GARDE-BOUE AR. More informationQuantity required : 0 |
|||||||||
|
19 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 0 |
|||||||||
|
20 |
00H04400711 - ECROU More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
21 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
22 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 0 |
|||||||||
|
23 |
86331700WNB - SUPPORT More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
24 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 0 |
|||||||||
|
25 |
SPACER- FOR REAR SIDE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00N01000821- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
26 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 0 |
|||||||||
|
27 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
28 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
29 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
30 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 0 |
|||||||||
|
31 |
862000 - SILENT BLOCK More informationQuantity required : 0 |
|||||||||
|
32 |
8615030001 - SELLE More informationQuantity required : 0 |
|||||||||
|
33 |
864256 - GRILLE More informationQuantity required : 0 |
|||||||||
|
34 |
864257 - GRILLE More informationQuantity required : 0 |
|||||||||
|
35 |
864367 - BAVETTE ANTI-ECLABOUSSURES More informationQuantity required : 0 |
|||||||||
|
36 |
864353 - COUVERCLE More informationQuantity required : 0 |
|||||||||
|
37 |
864354 - COUVERCLE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/1/img/63661.jpg)
38 |
00008051200 - VIS 5X12 More informationQuantity required : 0 |
|||||||||
|
39 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 0 |
|||||||||
|
40 |
86391700WG2 - DECALCO SERIE More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
41 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 0 |
|||||||||
|
42 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 0 |
|||||||||
|
43 |
898059 - COUVERCLE CARTER More informationQuantity required : 0 |
|||||||||
|
44 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
45 |
00H01600911 - ENTRETOISE More informationQuantity required : 0 |
|||||||||
|
46 |
8670570001 - DECALCO More informationQuantity required : 0 |
|||||||||
