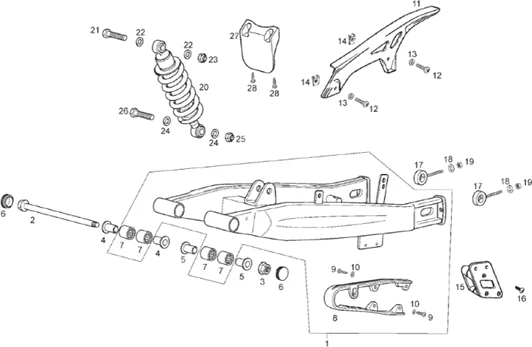

Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)

	P2R reference	192859
	Maker reference	86501700WNA5

86501700WNA5 - BRAS OSCILLANT

	P2R reference	154389
	Maker reference	867217

867217 - ESSIEU

	P2R reference	154390
	Maker reference	866758

866758 - CASQ.SEPAR.DR.BASCULNT.TER/MUL125

	P2R reference	154391
	Maker reference	866757

866757 - CASQ.SEPAR.IZ.BASCULNT.TER125

	P2R reference	192860
	Maker reference	00N00301261

00N00301261 - BOUCHON

	P2R reference	67416
	Maker reference	600161

ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY -600161

	P2R reference	154384
	Maker reference	00H01807331

00H01807331 - PLAQUE GLISSEMENT CHAINE

	P2R reference	63751
	Maker reference	000734819645

SCREW - FOR AIR FILTER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00073481964

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	64557
	Maker reference	00H01508181

CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01508181-

	P2R reference	63696
	Maker reference	000120612005

00012061200 - VIS A TETE RONDE A FENTES C

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	69853
	Maker reference	86133R

CHAIN GUIDE "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX/DERBI 50 SENDA (COMPLETE) -86133R-

	P2R reference	63752
	Maker reference	000920612145

00092061214 - VIS A TETE RONDE A FENTES C

	P2R reference	64486
	Maker reference	00H01305171

WHEEL TENSIONER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -00H01305171

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	192861
	Maker reference	863314

863314 - AMORTISSEUR

	P2R reference	64230
	Maker reference	00H00303892

00H00303892 - BOULON TETE HEX. M12 175X58

	P2R reference	63633
	Maker reference	000031154225

00003115422 - ROND. PLATE MECANISSE

	P2R reference	63716
	Maker reference	000231120005

NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000-

	P2R reference	63633
	Maker reference	000031154225

00003115422 - ROND. PLATE MECANISSE

	P2R reference	63716
	Maker reference	000231120005

NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000-

	P2R reference	64226
	Maker reference	00H00302892

00H00302892 - BOULON TETE HEX. M12 175X50

	P2R reference	192863
	Maker reference	864351

864351 - PROTECTION

	P2R reference	63681
	Maker reference	000110514015

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401
