Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

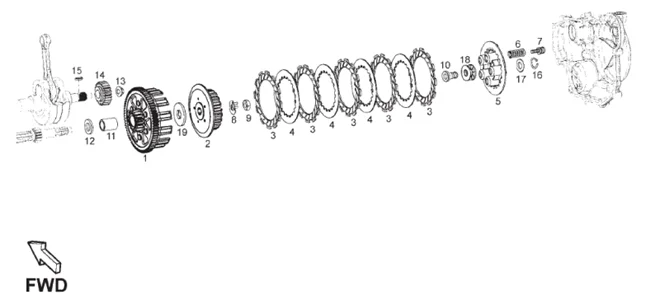

Moteur : 65.18 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1112/Mulhacen_125_4T_E3_2010_(EMEA)_65.18.png)
1 |
2R000189 - ENGRENAGE More informationQuantity required : 0 |
||||||
|
1 |
2R000190 - ENGRENAGE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
2 |
CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/5/3/img/70353.jpg)
3 |
CLUTCH DISC "PIAGGIO GENUINE PART" APRILIA 125 RS 2011>, TUONO 2017>, SX, RX 2018> -871341- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/9/img/146189.jpg)
4 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -1A007879 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/9/img/69429.jpg)
5 |
CLUTCH COLLAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50-125 RS4 2011>, 50 SX, RX 2006>, 125 SX, RX 2018> -847046- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/2/img/70712.jpg)
6 |
879285 - RESSORT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/1/img/69431.jpg)
7 |
SCREW - FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847048- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
8 |
CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
9 |
NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/4/img/69494.jpg)
10 |
CLUTCH END PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS, TUONO -847223- More informationQuantity required : 0 |
||||||
|
11 |
B044411 - ENTRETOISE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
12 |
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
13 |
NUT - FOR IGNITION FLYWHEEL/CLUTCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -B015804 More informationQuantity required : 0 |
||||||
|
14 |
8714475001 - PIGNON More informationQuantity required : 0 |
||||||
|
14 |
8714475002 - PIGNON More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
15 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -000097- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
16 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
17 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
18 |
CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/2/1/6/img/187216.jpg)
19 |
1A009075 - ENTRETOISE More informationQuantity required : 0 |
||||||
|
19 |
1A009075 - ENTRETOISE More informationQuantity required : 0 |
