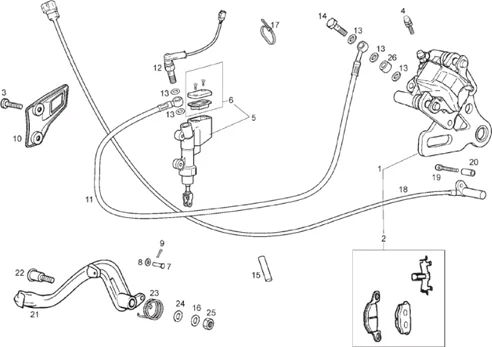

Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)

	P2R reference	192946
	Maker reference	865512

865512 - PINCE FREIN

	P2R reference	189140
	Maker reference	864428

864428 - KIT PLAQUETTES

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

	P2R reference	70045
	Maker reference	864123

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123

	P2R reference	189141
	Maker reference	864110

864110 - POMPE FREIN ARRIERE

	P2R reference	189142
	Maker reference	864425

864425 - COUVERCLE

	P2R reference	189143
	Maker reference	864407

864407 - PIVOT

	P2R reference	71410
	Maker reference	AP8120622

FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622-

	P2R reference	154537
	Maker reference	863552

863552 - TAPA BOMBA FRENO TRAS.MUL125

	P2R reference	192947
	Maker reference	864427

864427 - TUYAU

	P2R reference	189146
	Maker reference	864426

864426 - RACCORD

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	70061
	Maker reference	864587

864587 - PROTECTOR GUIA CABLES MUL125

	P2R reference	63787
	Maker reference	004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	70025
	Maker reference	863307

SPEED SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>, RCR 2011>/APRILIA 50 SX 2011>, RX 2011> -863307

	P2R reference	63667
	Maker reference	000080635005

00008063500 - BOULON.6M100X35.

	P2R reference	70068
	Maker reference	864826

864826 - CASQ.TOPE CAPTADOR MUL125 CAFE

	P2R reference	154536
	Maker reference	865585

865585 - SCTO.PALANCA FRENO TRAS.

	P2R reference	187881
	Maker reference	00H01103171

00H01103171 - VIS

	P2R reference	192948
	Maker reference	863454

863454 - RESSORT

	P2R reference	63655
	Maker reference	000055275405

SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540-

	P2R reference	63715
	Maker reference	000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

	P2R reference	70126
	Maker reference	865511

865511 - R-CASQUILLO RACORD MULHACEN CAFE 125CC
