Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

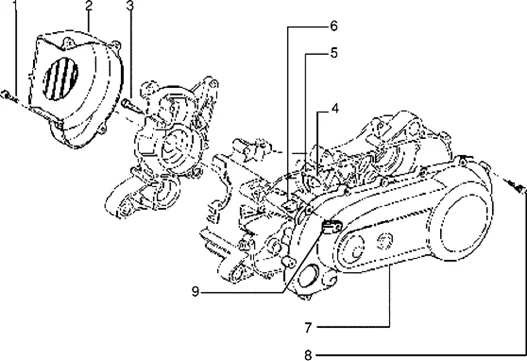

Moteur : T6 COUVERCLE D'EMBRAYAGE-COUVERCLE LIMAÇON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T6.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
1 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856- More informationQuantity required : 4 |
||||||
2 |
286935 - CARTER VENTILATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/6/img/66166.jpg)
4 |
286207 - TAMPON More informationQuantity required : 1 |
||||||
|
5 |
286206 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/9/img/66039.jpg)
6 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON, ZIP, VESPA LX, VESPA-S/APRILIA 50 SR, SPORT-CITY, SCARABEO -259625- More informationQuantity required : 1 |
||||||
|
7 |
8284175 - COUVERTURE More informationQuantity required : 1 |
||||||
|
8 |
030054 - VIS S03005400 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/7/img/65927.jpg)
9 |
216983 - COLLIER More informationQuantity required : 1 |
All the exploded views of this vehicle
-
